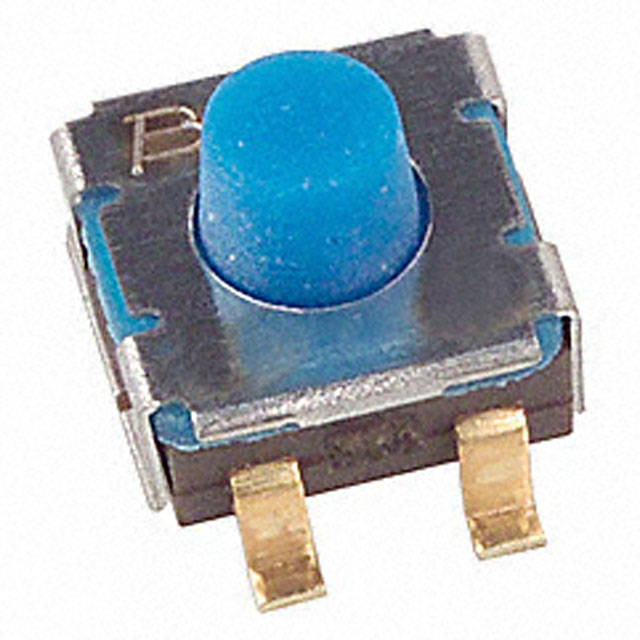

7914G Series

Catalog

SWITCH TACTILE N.O. SPST ROUND BUTTON GULL WING 0.1A 16VAC 16VDC 100000CYCLES 2.94N SMD T/R

Part	Mechanical Life	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Rating @ Voltage	Outline [y]	Outline [x]	Switch Function	Ingress Protection	Actuator Type	Actuator Height off PCB, Vertical [z]	Termination Style	Illumination	Operating Force	Actuator Orientation	Circuit	Actuator Height off PCB, Vertical
Bourns Inc. 7914G-1-000E	100000 Cycles	Silicone Rubber	-55 C	125 °C	Surface Mount	0.1 A 16 VAC/DC	5 mm	5 mm	Off-Mom	IP67 - Dust Tight Waterproof	Standard	4.19 mm	Gull Wing	Non-Illuminated	300 gf	Top Actuated	SPST-NO
Bourns Inc. 7914G-1-032E	100000 Cycles	Silicone Rubber	-55 C	125 °C	Surface Mount	0.1 A 16 VAC/DC	5 mm	5 mm	Off-Mom	IP67 - Dust Tight Waterproof	Standard		Gull Wing	Non-Illuminated	300 gf	Top Actuated	SPST-NO
Bourns Inc. 7914G-1-000	100000 Cycles	Silicone Rubber	-55 C	125 °C	Surface Mount	0.1 A 16 VAC/DC	5 mm	5 mm	Off-Mom	IP67 - Dust Tight Waterproof	Standard	4.19 mm	Gull Wing	Non-Illuminated	300 gf	Top Actuated	SPST-NO
Bourns Inc. 7914G-1-024	100000 Cycles	Silicone Rubber	-55 C	125 °C	Surface Mount	0.1 A 16 VAC/DC	5 mm	5 mm	Off-Mom	IP67 - Dust Tight Waterproof	Flush		Gull Wing	Non-Illuminated	300 gf	Top Actuated	SPST-NO	2.62 mm
Bourns Inc. 7914G-1-024E	100000 Cycles	Silicone Rubber	-55 C	125 °C	Surface Mount	0.1 A 16 VAC/DC	5 mm	5 mm	Off-Mom	IP67 - Dust Tight Waterproof	Flush		Gull Wing	Non-Illuminated	300 gf	Top Actuated	SPST-NO	2.62 mm
