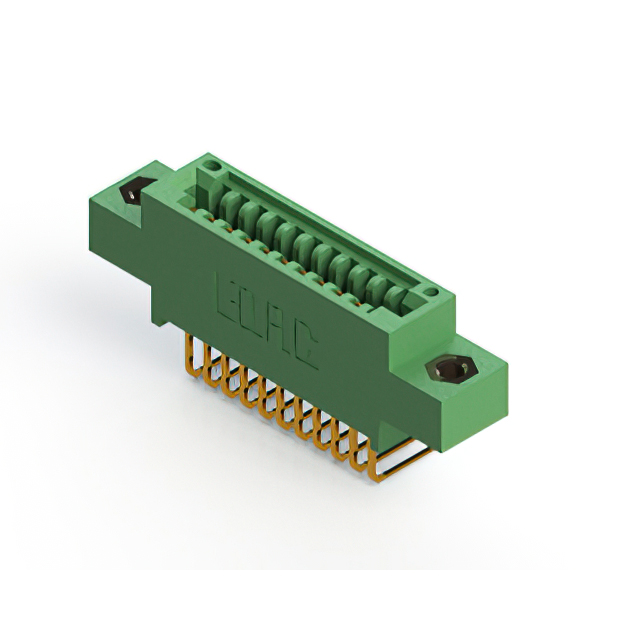

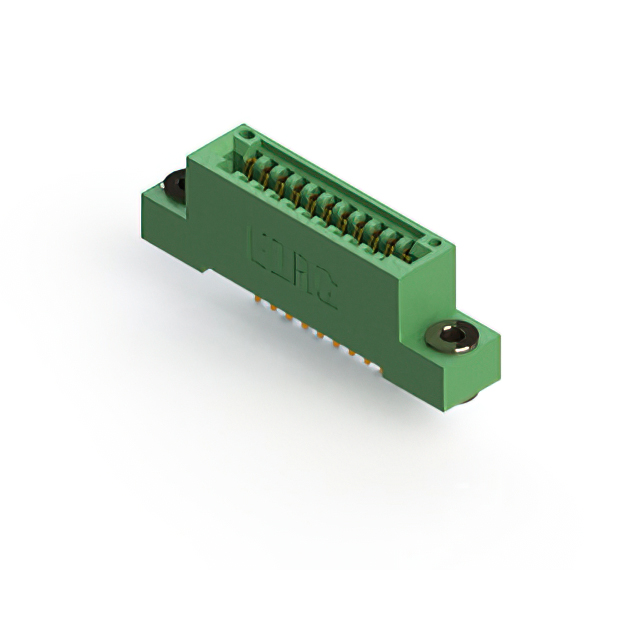

845-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 11POS 0.100
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions | Contact Type | Number of Rows | Contact Material | Number of Positions/Bay/Row | Mounting Type | Gender | Color | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Card Thickness [Max] | Card Thickness [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

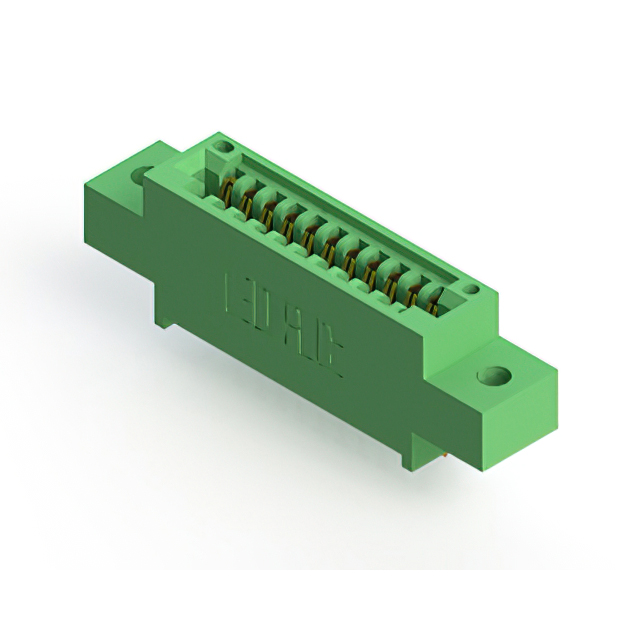

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Solder | 3.25 mm | 0.128 " | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |

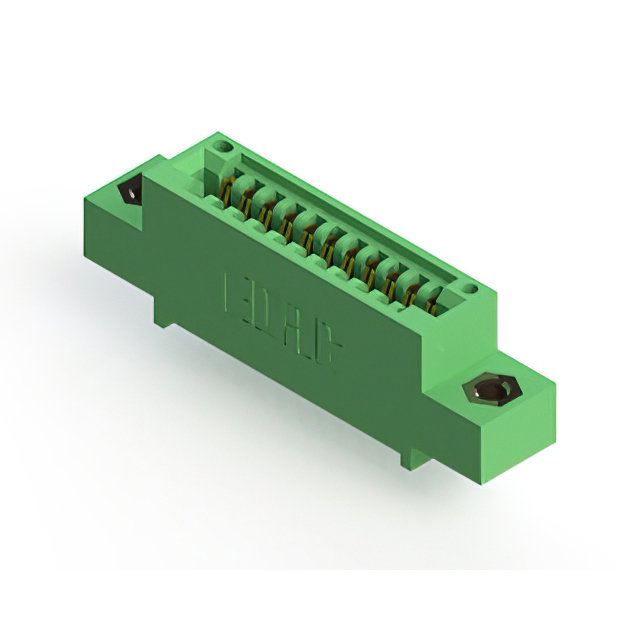

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Solder | 3.25 mm | 0.128 " | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Flush Mount Top Opening Unthreaded |

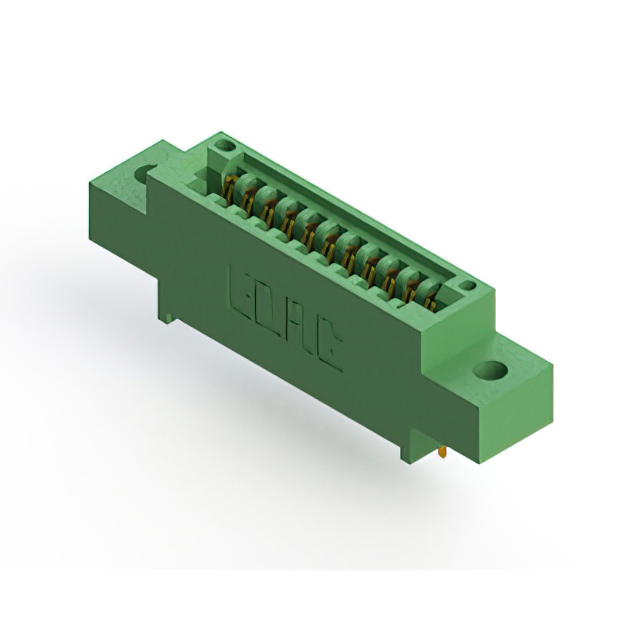

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Solder | 3.25 mm | 0.128 " | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |

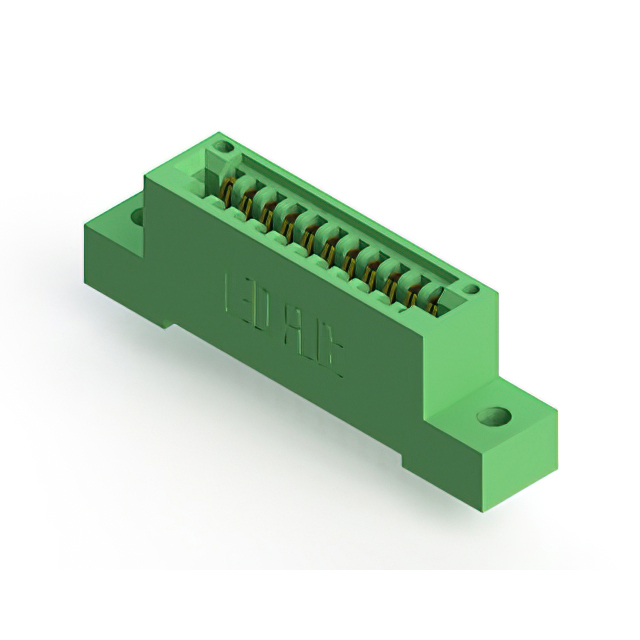

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Solder | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||

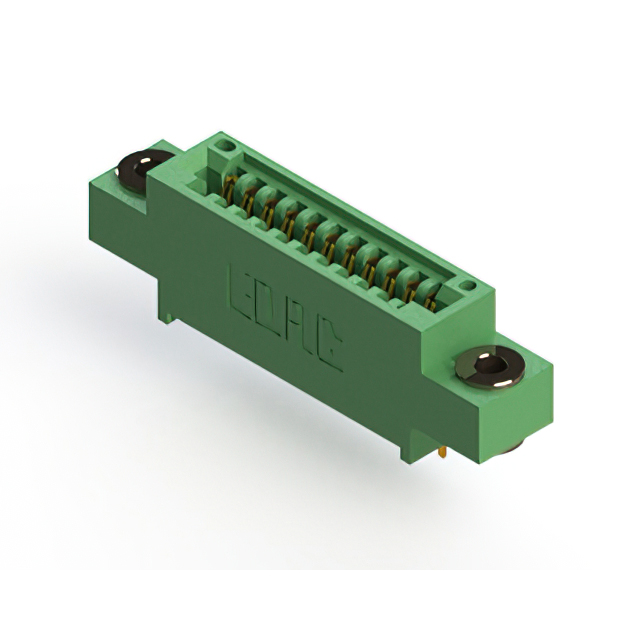

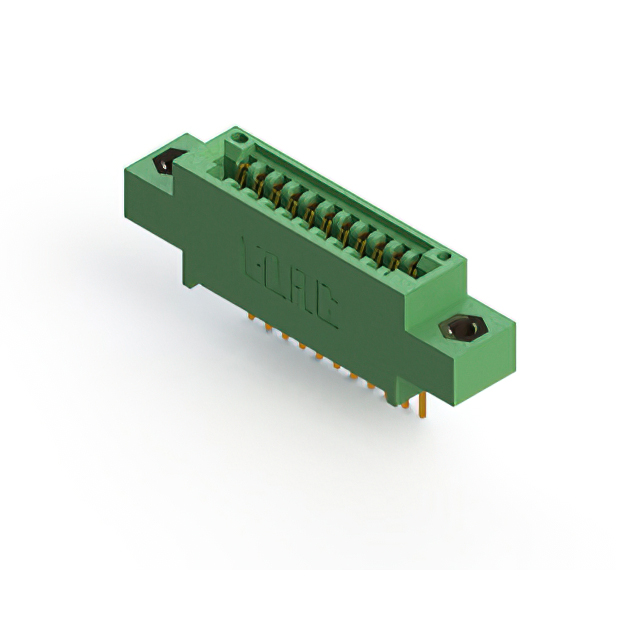

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Wire Wrap | 2.95 mm | 0.116 " | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Flush Mount |

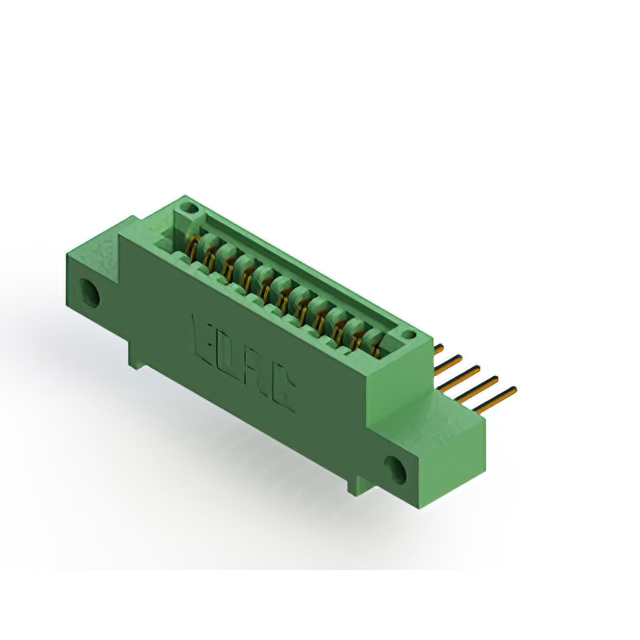

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Right Angle Through Hole | Female | Green | Solder | 3.25 mm | 0.128 " | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Wire Wrap | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||

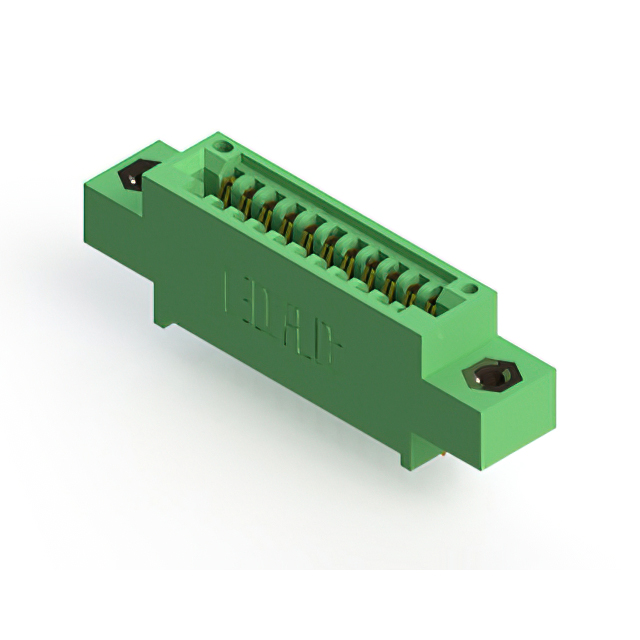

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Solder | 2.95 mm | 0.116 " | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Through Hole | Female | Green | Solder | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.1 " | 2.54 mm | 0.25 Ám | 10 Áin | Single | 11 | Cantilever | 1 | Copper Alloy | 11 | Right Angle Through Hole | Female | Green | Solder | Non Specified - Single Edge | Gold | 125 °C | -40 C | 0.07 in 1.78 mm | 0.054 in 1.37 mm | M3 Threaded Insert Top Mount Opening |
