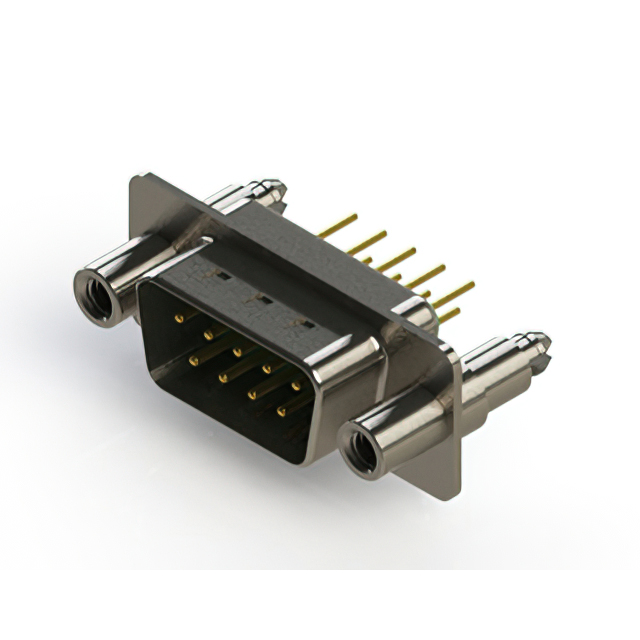

627-M09 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS VERTICAL MACHINED D-SUB CONNECTORS
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Contact Finish Thickness | Connector Type | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Features | Connector Style | Material Flammability Rating | Number of Rows [custom] | Number of Positions | Mounting Type | Flange Feature | Contact Type | Contact Finish | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Flash | Plug Male Pins | Solder | 1 | DE E | 5 A | Board Lock Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | Nickel Plated Steel | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Plug Male Pins | Solder | 1 | DE E | 5 A | Board Lock Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | Nickel Plated Steel | 30 Áin | 0.76 Ám | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Plug Male Pins | Solder | 1 | DE E | 5 A | Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | 15 µin | 0.38 µm | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Plug Male Pins | Solder | 1 | DE E | 5 A | Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | Nickel Plated Steel | 15 µin | 0.38 µm | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Plug Male Pins | Solder | 1 | DE E | 5 A | Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | Nickel Plated Steel | 30 Áin | 0.76 Ám | |
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Flash | Plug Male Pins | 1 | DE E | 5 A | Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Free Hanging (In-Line) | Board Side (4-40) | Signal | Gold | ||||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Plug Male Pins | Solder | 1 | DE E | 5 A | Board Lock Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | 30 Áin | 0.76 Ám | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Plug Male Pins | Solder | 1 | DE E | 5 A | Board Lock Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | 15 µin | 0.38 µm | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Flash | Plug Male Pins | Solder | 1 | DE E | 5 A | Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Through Hole | Board Side (4-40) | Signal | Gold | Nickel Plated Steel | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Plug Male Pins | 1 | DE E | 5 A | Grounding Indents Shielded | D-Sub | UL94 V-0 | 2 | 9 | Free Hanging (In-Line) | Board Side (4-40) | Signal | Gold | Nickel Plated Steel | 15 µin | 0.38 µm |
