5435 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

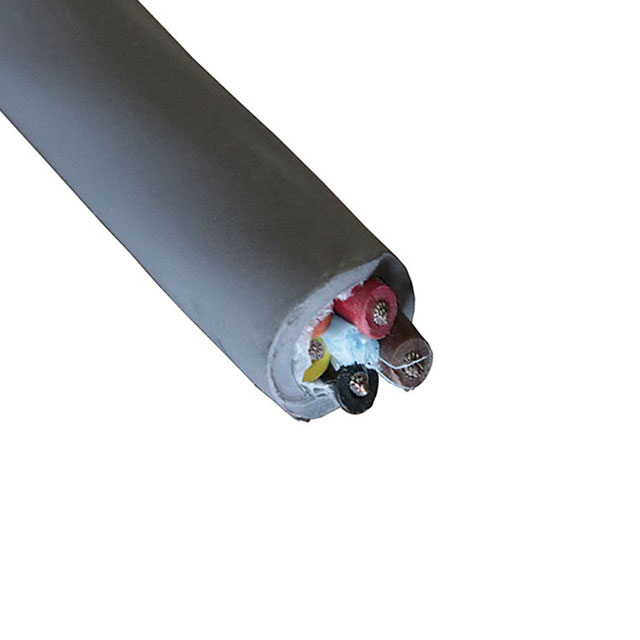

CBL 5COND 16AWG SLATE 1000=1000'
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Voltage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [diameter] | Cable Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Material | Wire Gauge | Usage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | -30 ░C | 105 ░C | 5 | Biological Compatibility Rip Cord | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 600 V | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Multi-Conductor | Slate | 11.79 mm | 0.464 in | ISO 10993 UL Style 2501 | Copper Tinned | 16 AWG | Communication Control | ||
 ALPHA WIRE | -30 ░C | 105 ░C | 5 | Biological Compatibility Rip Cord | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 600 V | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Multi-Conductor | Black | 11.79 mm | 0.464 in | ISO 10993 UL Style 2501 | Copper Tinned | 16 AWG | Communication Control | 304.8 m | 1000 ft |
ALPHA WIRE | -30 ░C | 105 ░C | 5 | Biological Compatibility Rip Cord | 1.6 mm | 0.063 in | Poly-Vinyl Chloride (PVC) | 600 V | Poly-Vinyl Chloride (PVC) | 19 | 0.0117 in | Multi-Conductor | Slate | 11.79 mm | 0.464 in | ISO 10993 UL Style 2501 | Copper Tinned | 16 AWG | Communication Control | 152.4 m | 500 ft |
