3420 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

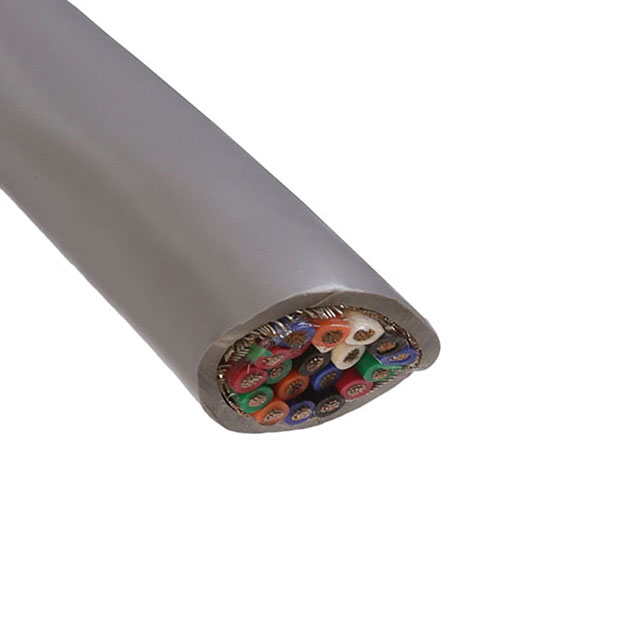

CABLE 20COND 18AWG SHLD
| Part | Jacket Color | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Shield Coverage | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Wire Gauge | Shield Type | Length | Length | Usage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Slate | Copper Tinned | 1.143 mm | 0.045 in | Multi-Conductor | 90 % | 20 | 19 | 30 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 105 ░C | -55 °C | 13.97 mm | 0.55 in | Copper Tinned | 18 AWG | Braid | 1000 ft | 304.8 m | Communication Control | ||
ALPHA WIRE | Slate | Copper Tinned | 1.143 mm | 0.045 in | Multi-Conductor | 90 % | 20 | 19 | 30 AWG | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 105 ░C | -55 °C | 13.97 mm | 0.55 in | Copper Tinned | 18 AWG | Braid | Communication Control | 30.5 m | 100 ft |
