A3U-TMS Series

Catalog

SWITCH PUSHBUTTON SPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Termination Style	Actuator Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - DC	Switch Function	Circuit	Color - Actuator/Cap	Mounting Type

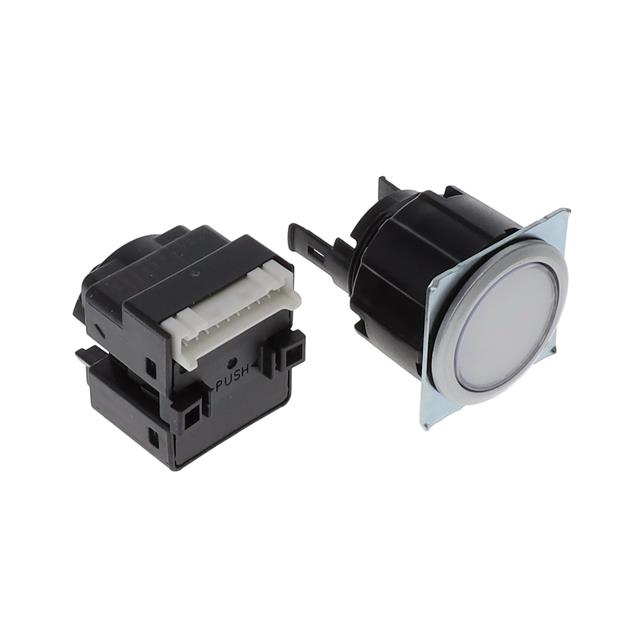

Omron Automation and Safety A3U-TMS-A1C-5M	200000 Cycles	1000000 Cycles	Connector	Button Flush Round	100 mA	-20 ░C	70 °C	Standard	No Marking	25.2 mm	IP65	30 V	On-Mom	SPDT	Clear	Panel Mount Front
Omron Automation and Safety A3U-TMS-A1C-M	200000 Cycles	1000000 Cycles	Connector	Button Flush Round	100 mA	-20 ░C	70 °C	Standard	No Marking	25.2 mm	IP40	30 V	On-Mom	SPDT	Clear	Panel Mount Front
Omron Automation and Safety A3U-TMS-A2C-M	200000 Cycles	1000000 Cycles	Connector	Button Flush Round	100 mA	-20 ░C	70 °C	Standard	No Marking	25.2 mm	IP40	30 V	On-Mom	DPDT	Clear	Panel Mount Front
Omron Automation and Safety A3U-TMS-A2C-5M	200000 Cycles	1000000 Cycles	Connector	Button Flush Round	100 mA	-20 ░C	70 °C	Standard	No Marking	25.2 mm	IP65	30 V	On-Mom	DPDT	Clear	Panel Mount Front
