5477L Series
Manufacturer: ALPHA WIRE
Beta
⌘K

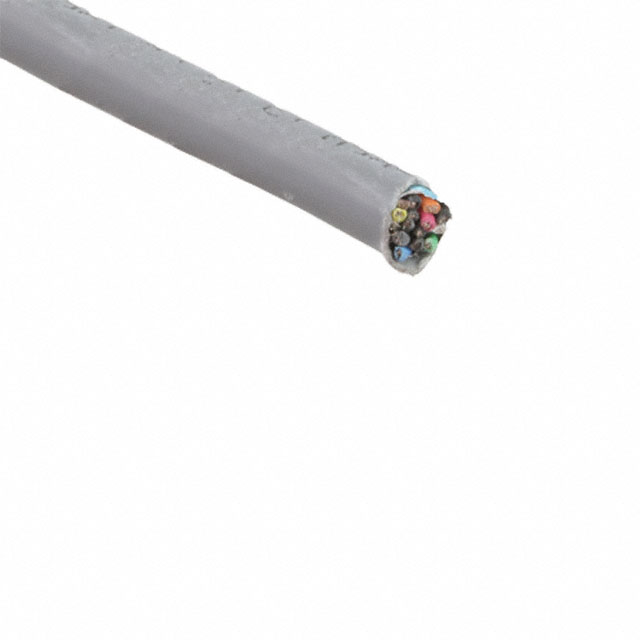

MULTI-PAIR 14COND 24AWG 500'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Features | Cable Type | Number of Conductors | Conductor Insulation | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 0.299 " | 7.6 mm | 300 VDC | 0.635 mm | 0.025 in | Slate | Drain Wire | Multi-Pair | 14 | Low Smoke Zero Halogen (LSZH) | 152.4 m | 500 ft | 7 | 32 AWG | Copper Tinned | 24 AWG | Low Smoke Zero Halogen (LSZH) | Foil |
 ALPHA WIRE | Aluminum | 100 % | 0.299 " | 7.6 mm | 300 VDC | 0.635 mm | 0.025 in | Slate | Drain Wire | Multi-Pair | 14 | Low Smoke Zero Halogen (LSZH) | 304.8 m | 1000 ft | 7 | 32 AWG | Copper Tinned | 24 AWG | Low Smoke Zero Halogen (LSZH) | Foil |
