F2213/16 Series

Catalog

HEATSHRINK 3/16" X 0.5' CLEAR

Part	Shelf Life Start	Shrink Temperature	Type	Recovered Wall Thickness	Recovered Wall Thickness	Color	Length	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life
ALPHA WIRE F2213/16 CL063	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Clear	152.4 mm	0.5 '	6 "	-55 C	135 °C	Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months

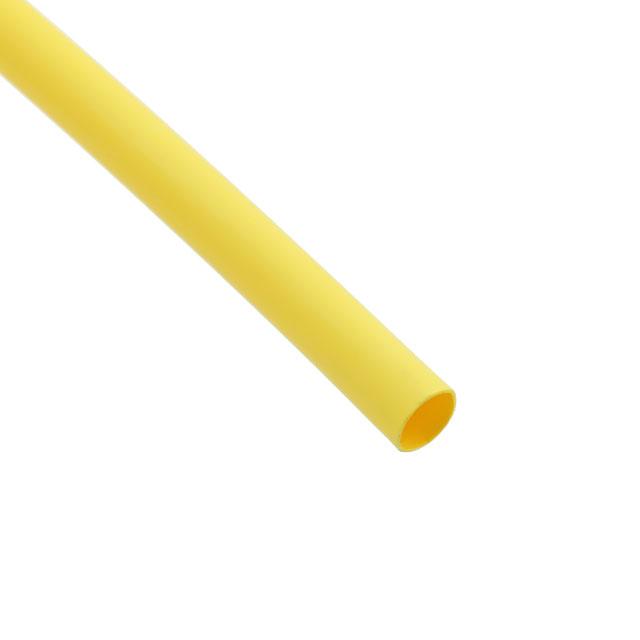

ALPHA WIRE F2213/16 YL063	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Yellow	152.4 mm	0.5 '	6 "	-55 C	135 °C	Flame Resistant Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 BK147	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Black	25.4 mm	0.083 ft	1 "	-55 C	135 °C	Flame Resistant Fluid Resistant UV Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 CL007	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Clear	15.2 m	50 ft		-55 C	135 °C	Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 GR002	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Green	152.4 m	500 ft		-55 C	135 °C	Flame Resistant Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 RD007	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Red	15.2 m	50 ft		-55 C	135 °C	Flame Resistant Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 BK161	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Black				-55 C	135 °C	Flame Resistant Fluid Resistant UV Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 YL007	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Yellow	15.2 m	50 ft		-55 C	135 °C	Flame Resistant Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 BL063	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Blue	152.4 mm	0.5 '	6 "	-55 C	135 °C	Flame Resistant Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
ALPHA WIRE F2213/16 YL002	Date of Manufacture	90 °C	Tubing Flexible	0.51 mm	0.02 in	Yellow	152.4 m	500 ft		-55 C	135 °C	Flame Resistant Fluid Resistant	2.36 mm	0.093 in	Polyolefin (PO) Irradiated	1	2	0.187 "	4.75 mm	144 Months
