84953 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

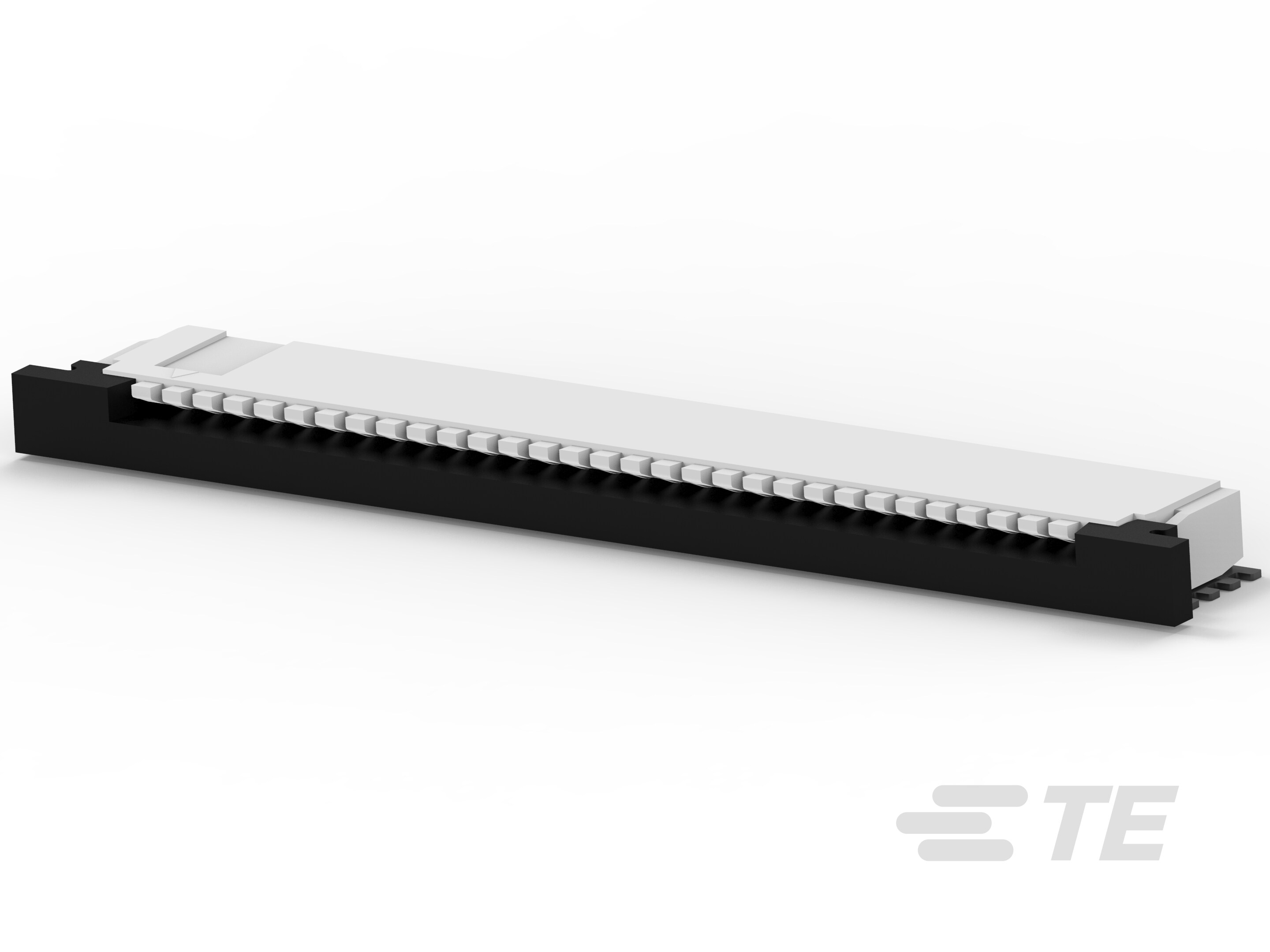

1MM FPC HORZ.TOP CONT.ASSY 30P

Part	Actuator Color	Contact Finish Thickness	Contact Finish Thickness	Housing Color	Pitch	Pitch	FFC, FCB Thickness	Actuator Material	Number of Positions	Contact Finish	Features	Housing Material	Mounting Type	Locking Feature	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Cable End Type	Voltage Rating	Height Above Board [z]	Height Above Board [z]	Connector/Contact Type	Contact Material
TE Connectivity AMP Connectors 3-84953-0	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	30	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze
TE Connectivity AMP Connectors 2-84953-9	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	29	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze
TE Connectivity AMP Connectors 2-84953-7	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	27	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze

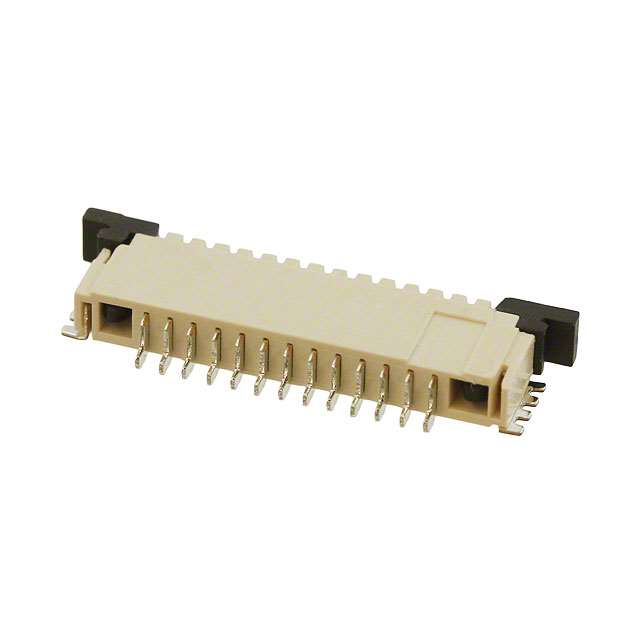

TE Connectivity AMP Connectors 1-84953-3	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	13	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze
TE Connectivity AMP Connectors 84953-9	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	9	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze

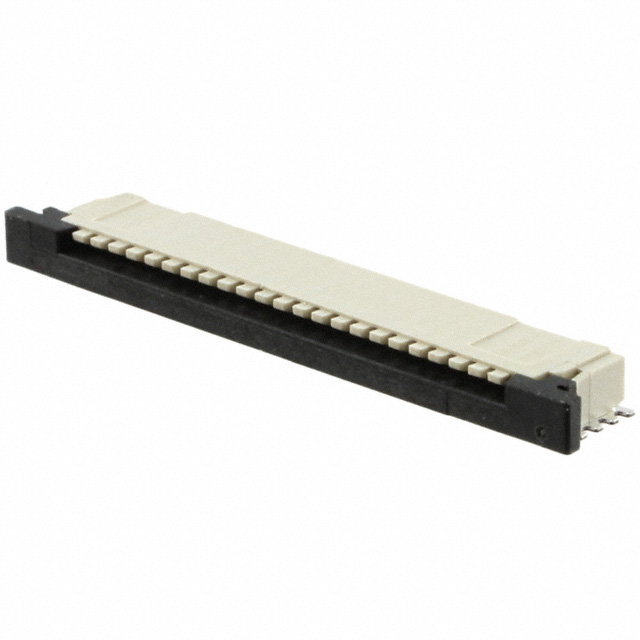

TE Connectivity AMP Connectors 2-84953-2	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	22	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze

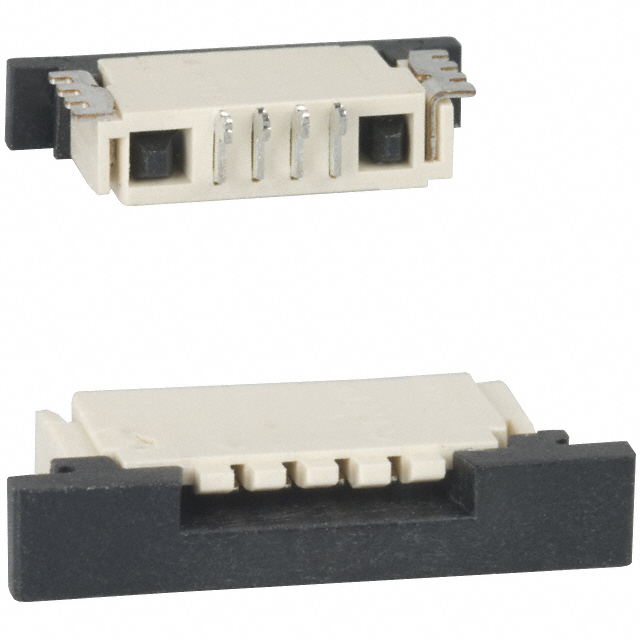

TE Connectivity AMP Connectors 84953-4	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	4	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze
TE Connectivity AMP Connectors 1-84953-1	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	11	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze
TE Connectivity AMP Connectors 2-84953-8	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	28	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze

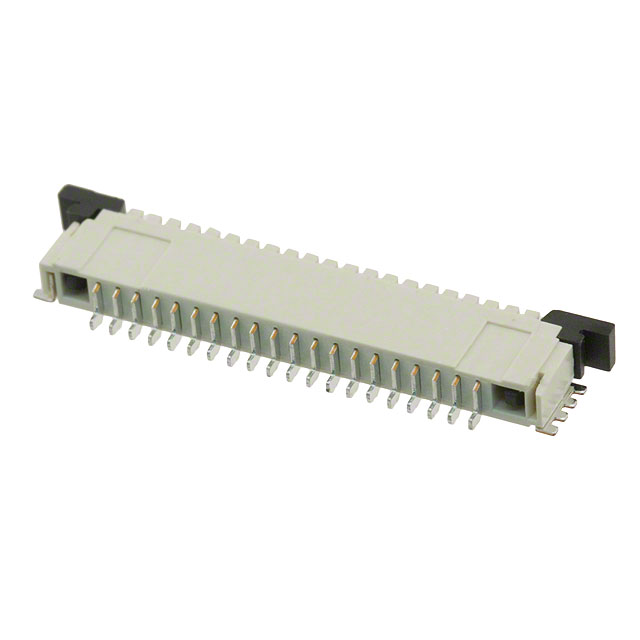

TE Connectivity AMP Connectors 2-84953-0	Black	78.7 µin	2 µm	Natural	1 mm	0.039 in	0.3 mm	Glass Filled Nylon Polyamide (PA)	20	Tin	Solder Retention Zero Insertion Force (ZIF)	Glass Filled Liquid Crystal Polymer (LCP)	Right Angle Surface Mount	Slide Lock	FPC	85 °C	-40 C	UL94 V-0	Solder	Straight	200 V	2.56 mm	0.101 "	Contacts Top	Phosphor Bronze
