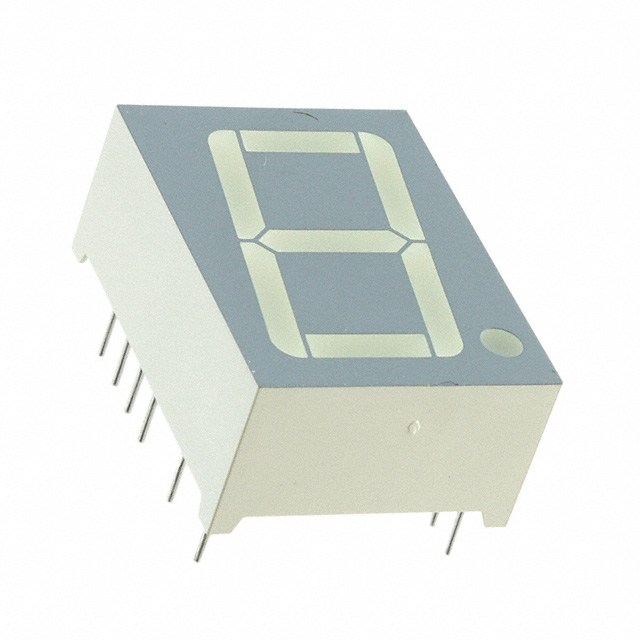

SC08-21 Series

Catalog

DISPLAY 7-SEG 0.8" SGL RED 18DIP

Part	Color	Current - Test	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Display Type	Package / Case	Package / Case	Common Pin	Wavelength - Peak	Digit/Alpha Size	Digit/Alpha Size	Voltage - Forward (Vf) (Typ)	Number of Characters	Power Dissipation (Max) [Max]	Millicandela Rating
Kingbright SC08-21SRWA	Red	20 mA	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	7-Segment	15 Leads 18-DIP	0.6 in 15.24 mm	Common Cathode	660 nm	0.8 in	20.32 mm	1.85 V	1	75 mw	36 mcd
Kingbright SC08-21EWA	Red	20 mA	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	7-Segment	15 Leads 18-DIP	0.6 in 15.24 mm	Common Cathode	627 nm	0.8 in	20.32 mm	2 V	1	75 mw	8 mcd
Kingbright SC08-21SURKWA	Red	20 mA	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	7-Segment	13 Leads 18-DIP	0.6 in 15.24 mm	Common Cathode	645 nm	0.8 in	20.32 mm	1.95 V	1	75 mw	61 mcd
Kingbright SC08-21GWA	Green	20 mA	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	7-Segment	15 Leads 18-DIP	0.6 in 15.24 mm	Common Cathode	565 nm	0.8 in	20.32 mm	2.2 V	1	62.5 mW	13 mcd
Kingbright SC08-21CGKWA	Green	20 mA	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	7-Segment	13 Leads 18-DIP	0.6 in 15.24 mm	Common Cathode		0.8 in	20.32 mm	2.1 V	1	75 mw	25 mcd
Kingbright SC08-21YWA	Yellow	20 mA	0.732 in 18.6 mm	0.984 in 25 mm	0.417 in 10.6 mm	7-Segment	15 Leads 18-DIP	0.6 in 15.24 mm	Common Cathode	590 nm	0.8 in	20.32 mm	2.1 V	1	75 mw	7.9 mcd
