1840035 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

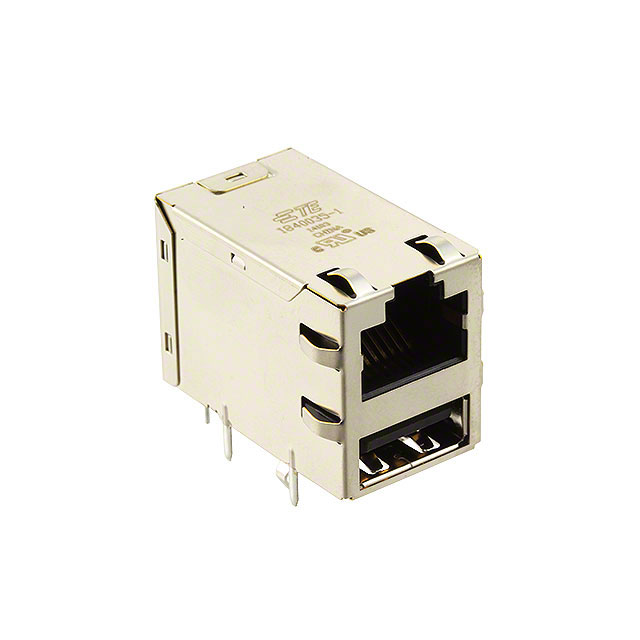

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Orientation | Number of Rows | LED Color | Housing Material | Contact Finish | Shielding | Number of Positions/Contacts | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Number of Ports | Mounting Type | Ratings | Tab Direction | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 90 ° | 2 | Does Not Contain LED | Thermoplastic | Gold | Shielded EMI Finger | 8p8c (RJ45 Ethernet) | Solder | 85 °C | -40 °C | Jack with USB A | 50 µin | 1.27 µm | 1 | Through Hole | Cat3 | Up | Phosphor Bronze | |
TE Connectivity Raychem Cable Protection | 90 ° | 2 | Does Not Contain LED | Thermoplastic | Gold | Shielded EMI Finger | 8p8c (RJ45 Ethernet) | Solder | 85 °C | -40 °C | Jack with USB A | 50 µin | 1.27 µm | 2 | Through Hole | Up | Phosphor Bronze | Board Guide Board Lock |
