ADC14 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC ADC 14BIT PIPELINED 40HVQFN

Part	Data Interface	Input Type	Ratio - S/H:ADC	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Architecture	Mounting Type	Reference Type	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of Inputs	Configuration	Number of Bits	Sampling Rate (Per Second)	Package / Case	Number of A/D Converters	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital	Supplied Contents	Input Range [Min]	Input Range [Max]	Utilized IC / Part
Freescale Semiconductor - NXP ADC1410S105HN/C1:5	LVDS - Parallel Parallel	Differential Single Ended	1:1	40-HVQFN (6x6)	85 °C	-40 °C	Pipelined	Surface Mount	External Internal	3.4 V	2.85 V	1	S/H-ADC	14	105 M	40-VFQFN Exposed Pad	1	2.85 V	3.4 V
Freescale Semiconductor - NXP ADC1410S080HN/C1,5	LVDS - Parallel Parallel	Differential Single Ended	1:1	40-HVQFN (6x6)	85 °C	-40 °C	Pipelined	Surface Mount	External Internal	3.4 V	2.85 V	1	S/H-ADC	14	80 M	40-VFQFN Exposed Pad	1	2.85 V	3.4 V
Freescale Semiconductor - NXP ADC1415S080HN/C1,5	LVDS - Parallel Parallel	Differential Single Ended	1:1	40-HVQFN (6x6)	85 °C	-40 °C	Pipelined	Surface Mount	External Internal			1	S/H-ADC	14	80 M	40-VFQFN Exposed Pad	1	2.85 V	3.4 V	5 V

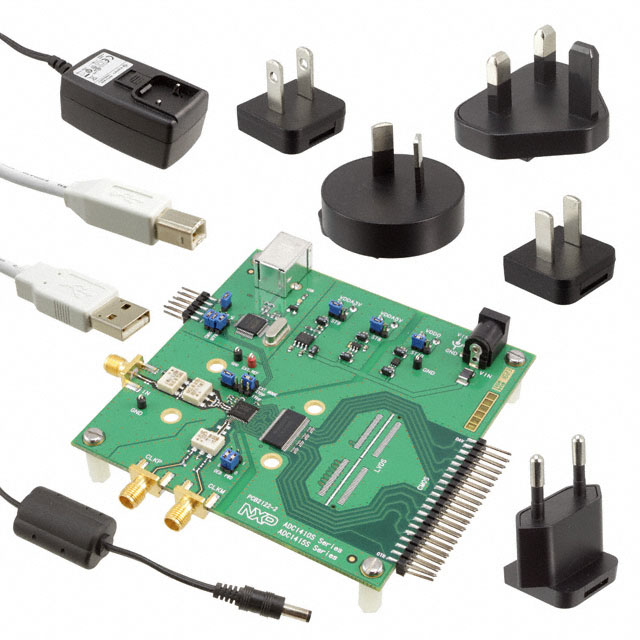

Freescale Semiconductor - NXP ADC1415S125F1/DB	Serial													14	125 M		1				Board(s) Cable(s) Power Supply	1 Vpp	2 Vpp	ADC1415S125

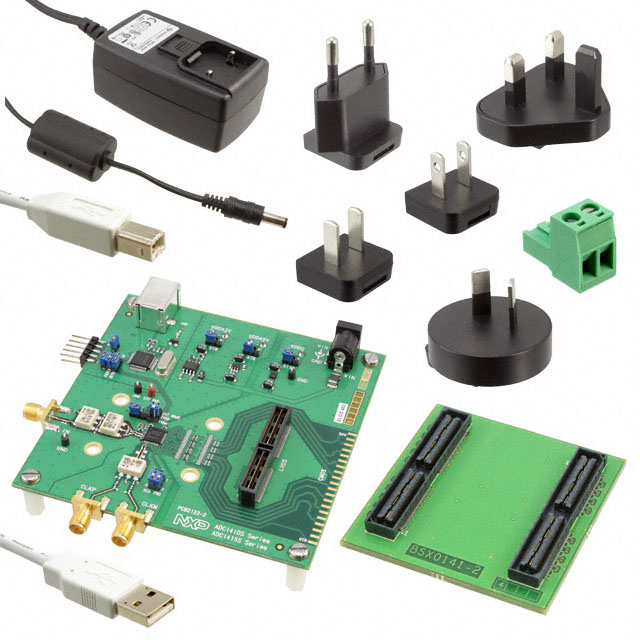

Freescale Semiconductor - NXP ADC1415S125F2/DB	Serial													14	125 M		1				Board(s) Cable(s) Power Supply	1 Vpp	2 Vpp	ADC1415S125
Freescale Semiconductor - NXP ADC1415S065HN/C1,5	LVDS - Parallel Parallel	Differential Single Ended	1:1	40-HVQFN (6x6)	85 °C	-40 °C	Pipelined	Surface Mount	External Internal			1	S/H-ADC	14	65 M	40-VFQFN Exposed Pad	1	2.85 V	3.4 V	5 V
