PMP4201 Series

Catalog

BIPOLAR TRANSISTORS - BJT 45 V, 100 MA NPN/NPN MATCHED DOUBLE TRANSISTOR

Part	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Frequency - Transition	Operating Temperature	Supplier Device Package	Transistor Type	Package / Case	Qualification	Grade

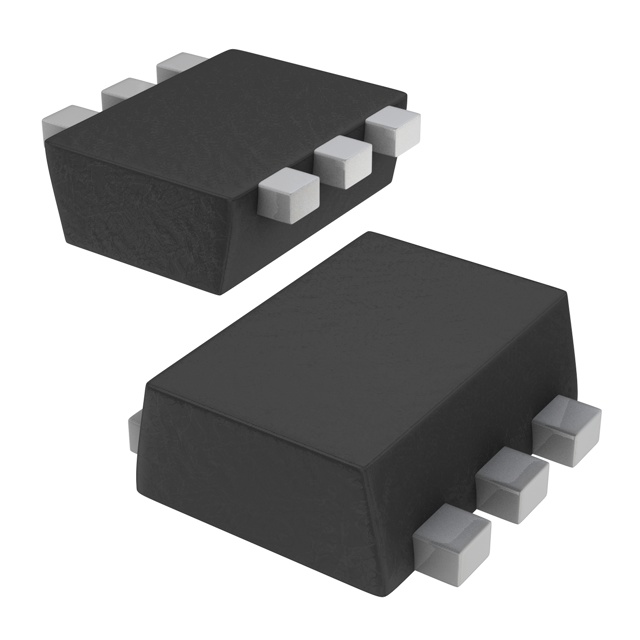

Nexperia USA Inc. PMP4201V,115	100 mA	45 V	400 mV	300 mW	15 nA	200	Surface Mount	250 MHz	150 °C	SOT-666	2 NPN (Dual) Matched Pair	SOT-563 SOT-666
Nexperia USA Inc. PMP4201Y,135	100 mA	45 V	400 mV	300 mW	15 nA	200	Surface Mount	250 MHz	150 °C	6-TSSOP	2 NPN (Dual) Matched Pair	6-TSSOP SC-88 SOT-363	AEC-Q100	Automotive
Nexperia USA Inc. PMP4201Y/DG/B2,115	100 mA	45 V	400 mV	200 mW	15 nA	200	Surface Mount	100 MHz	150 °C	6-TSSOP	2 NPN (Dual)	6-TSSOP SC-88 SOT-363	AEC-Q101	Automotive
Nexperia USA Inc. PMP4201G,135	100 mA	45 V	400 mV	300 mW	15 nA	200	Surface Mount	250 MHz	150 °C	5-TSSOP	2 NPN (Dual) Matched Pair Common Emitter	5-TSSOP SC-70-5 SOT-353	AEC-Q100	Automotive
