M80-466 Series

Catalog

25+25 POS. FEMALE DIL 24-28AWG CABLE CONN. KIT, EXTENDED WALL, JACKSCREWS ROHS COMPLIANT: YES

Part	Number of Rows [custom]	Connector Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Finish	Cable Termination	Mounting Type	Number of Positions	Features	Contact Type	Wire Gauge [Min]	Wire Gauge [Max]	Row Spacing	Row Spacing	Color
Harwin Inc. M80-4665005	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	50	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black

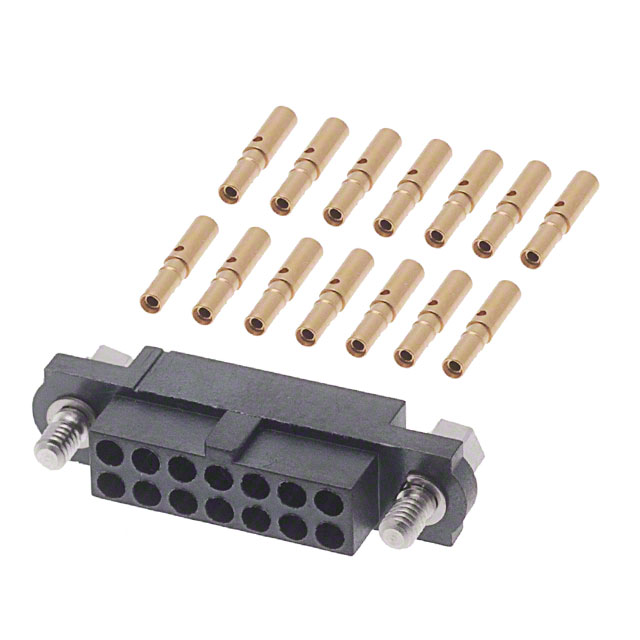

Harwin Inc. M80-4661442A	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	14	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black
Harwin Inc. M80-4661005	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	10	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black
Harwin Inc. M80-4661042A	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	10	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black
Harwin Inc. M80-4661442	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	14	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black

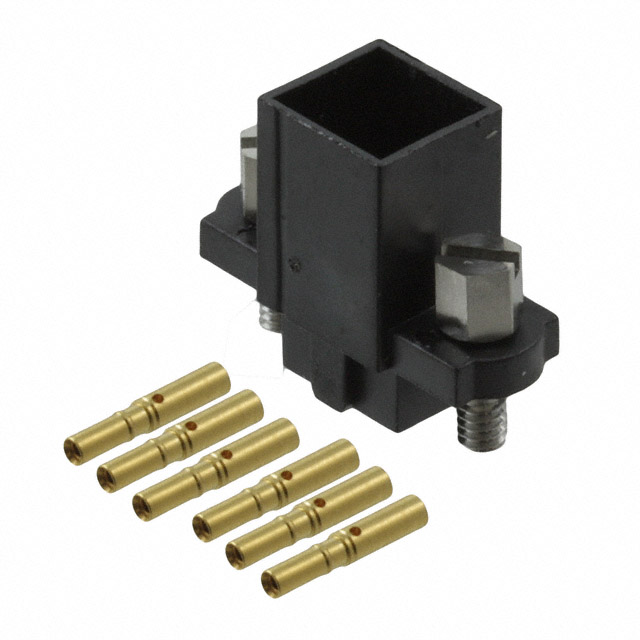

Harwin Inc. M80-4660605	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	6	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black
Harwin Inc. M80-4662605	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	26	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black
Harwin Inc. M80-4661205	2	Receptacle	Discrete	0.3 Ám	11.8 Áin	0.079 in	2 mm	Gold	Crimp	Free Hanging (In-Line)	12	Jackscrews Polarizing Key	Female Socket	24 AWG	28 AWG	2 mm	0.079 in	Black
