0337-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Length - Overall [x]	Length - Overall [x]	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Contact Finish	Contact Material	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Features	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]

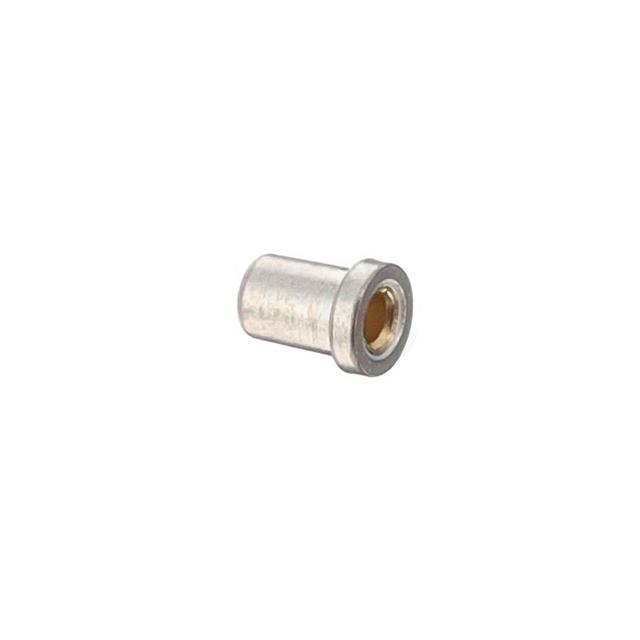

Mill-Max Manufacturing Corp. 0337-0-15-80-15-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	0.066 in	1.68 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Gold	Beryllium Copper	No Tail	0.078 "	1.98 mm
Mill-Max Manufacturing Corp. 0337-0-15-15-15-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	0.066 in	1.68 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Gold	Beryllium Copper	No Tail	0.078 "	1.98 mm

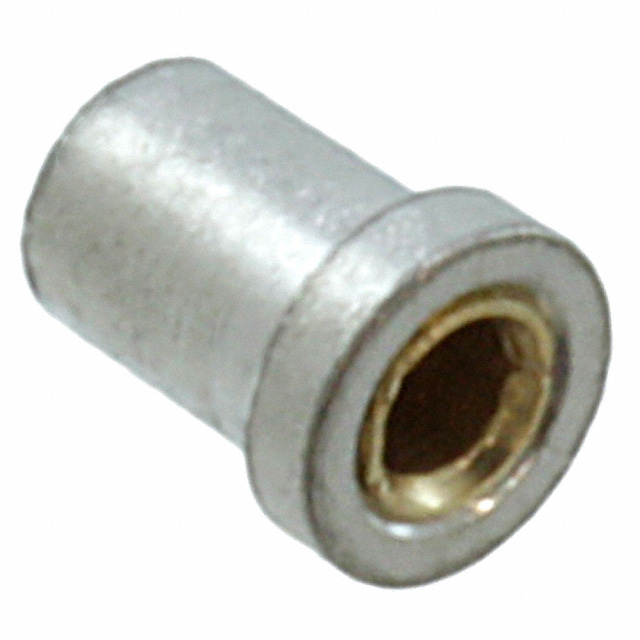

Mill-Max Manufacturing Corp. 0337-0-67-80-15-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Solder	0.1 in	2.54 mm	2.54 mm	0.1 in	0.066 in	1.68 mm	0.51 mm	0.02 in	0.81 mm	0.032 "	Gold	Beryllium Copper	No Tail	0.078 "	1.98 mm	Knockout Bottom (Organic Fiber Plug®)	1.63 mm	0.064 in
