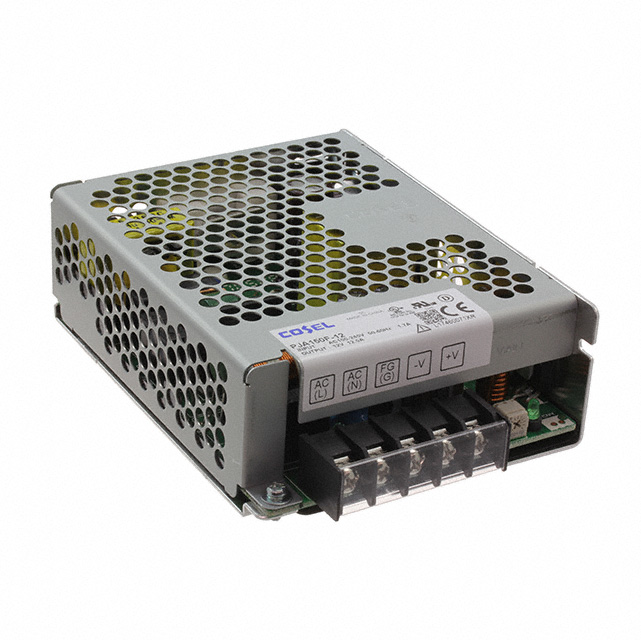

PJA150F Series

Catalog

AC/DC CONVERTER 15V 150W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Efficiency	Voltage - Isolation	Applications	Features	Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output 1	Standard Number	Number of Outputs	Voltage - Output 1	Approval Agency	Voltage - Output 1 [custom]	Current - Output (Max) [Max]	Input Type	AC Voltage - Input [Max]	AC Voltage - Input [Min]
Cosel USA, Inc. PJA150F-15-T	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	150 W	87 %	3000 V	ITE (Commercial)	Universal Input	Enclosed	70 °C	-20 °C	Chassis Mount	10 A	508; 60950-1; 62368-1	1	15 V	CE CSA cURus DEMKO UL
Cosel USA, Inc. PJA150F-24-R	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	154 W	90 %	3000 V	ITE (Commercial)		Enclosed	70 °C	-20 °C	Chassis Mount		508; 60950-1; 62368-1	1	24 V	CE CSA cURus DEMKO UL
Cosel USA, Inc. PJA150F-36	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	150 W	90 %	3000 V	ITE (Commercial)	Universal Input	Enclosed	70 °C	-20 °C	Chassis Mount	4.2 A	508; 60950-1; 62368-1	1		CE CSA cURus DEMKO UL	36 V
Cosel USA, Inc. PJA150F-12-J	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	150 W	87 %	3000 V	ITE (Commercial)	Universal Input	Enclosed	70 °C	-20 °C	Chassis Mount	12.5 A	60950-1 62368-1	1	12 V	CE CSA cURus DEMKO UL
Cosel USA, Inc. PJA150F-48-N2	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	154 W	90 %	3000 V	ITE (Commercial)	Universal Input		70 °C	-20 °C			508; 60950-1; 62368-1	1	48 V	CE CSA cURus DEMKO UL		3.2 A	AC	264 VAC	85 VAC
Cosel USA, Inc. PJA150F-36-R	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	151 W	90 %	3000 V	ITE (Commercial)		Enclosed	70 °C	-20 °C	Chassis Mount	4.2 A	508; 60950-1; 62368-1	1		CE CSA cURus DEMKO UL	36 V
Cosel USA, Inc. PJA150F-36-T	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	151 W	90 %	3000 V	ITE (Commercial)	Universal Input	Enclosed	70 °C	-20 °C	Chassis Mount	4.2 A	508; 60950-1; 62368-1	1		CE CSA cURus DEMKO UL	36 V
Cosel USA, Inc. PJA150F-15-C	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	150 W	87 %	3000 V	ITE (Commercial)	Universal Input	Conformal Coated Enclosed	70 °C	-20 °C	Chassis Mount	10 A	508; 60950-1; 62368-1	1	15 V	CE CSA cURus DEMKO UL
Cosel USA, Inc. PJA150F-15-N2	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	150 W	87 %	3000 V	ITE (Commercial)	Universal Input		70 °C	-20 °C			508; 60950-1; 62368-1	1	15 V	CE CSA cURus DEMKO UL		10 A	AC	264 VAC	85 VAC
Cosel USA, Inc. PJA150F-12-C	40.9 mm	1.61 in	5.08 "	3.82 "	97 mm	129 mm	150 W	87 %	3000 V	ITE (Commercial)	Universal Input	Conformal Coated Enclosed	70 °C	-20 °C	Chassis Mount	12.5 A	508; 60950-1; 62368-1	1	12 V	CE CSA cURus DEMKO UL
