9CR0812 Series

Catalog

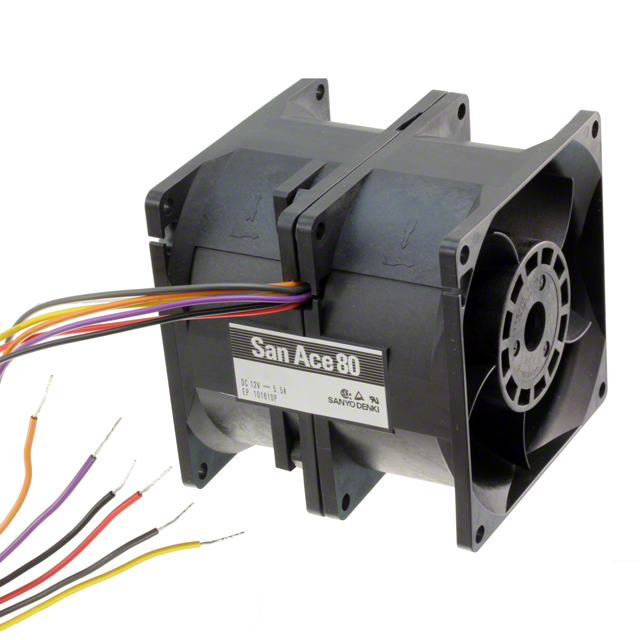

FAN AXIAL DUAL 80X80MM 12VDC

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Noise	Static Pressure	Static Pressure	Weight	Weight	Width [y]	Fan Type	Power (Watts)	Termination	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	RPM [custom]	RPM [custom]	Air Flow	Air Flow	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated
Sanyo Denki America Inc. 9CR0812H801	10.8 VDC	13.2 VDC	Plastic	Plastic	40000 Hrs	3.6 A	68 dB	401 Pa	1.61 in H2O	0.772 lb	350.17 g	80 mm	Tubeaxial (Dual)	43.2 W	3	CSA TUV UL	80 mm	80 mm	7000 RPM	4600 RPM	3.92 mł/min	140 CFM	Ball	-10 °C	60 °C	12 VDC
Sanyo Denki America Inc. 9CR0812P8S03	10.8 VDC	13.2 VDC	Plastic	Plastic	40000 Hrs	5.5 Amps	71 dB(A)	520 Pa	2.09 in H2O	0.772 lb	350.17 g	80 mm	Tubeaxial (Dual)	66 W	4	CSA TUV UL	80 mm	80 mm	8000	5300	4.48 m³/min	160 CFM	Ball	-10 °C	60 °C	12 VDC
Sanyo Denki America Inc. 9CR0812P8H03	10.8 VDC	13.2 VDC	Plastic	Plastic	40000 Hrs	3.6 A	68 dB	401 Pa	1.61 in H2O	0.772 lb	350.17 g	80 mm	Tubeaxial (Dual)	43.2 W	4	CSA TUV UL	80 mm	80 mm	7000 RPM	4600 RPM	3.92 mł/min	140 CFM	Ball	-10 °C	60 °C	12 VDC
