0287-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Square Pin Size	Accepts Square Pin Size	Socket Depth	Socket Depth	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Tail Type	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness

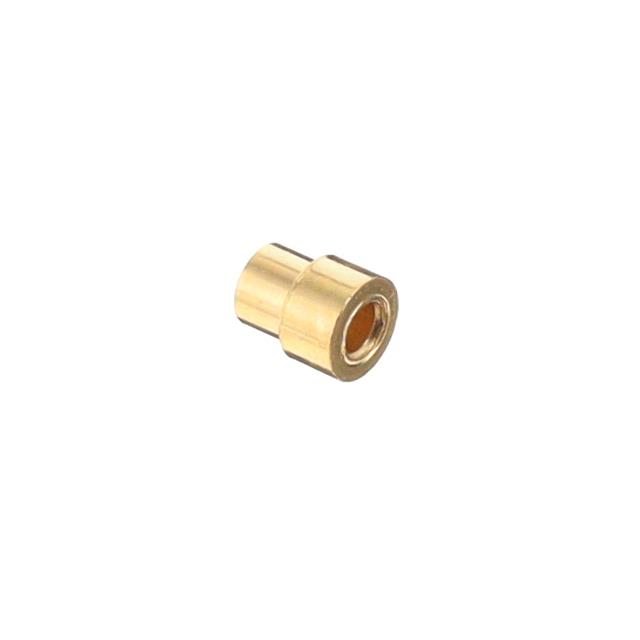

Mill-Max Manufacturing Corp. 0287-0-15-15-16-14-10-0	-55 C	125 °C	2.03 mm	0.08 in	0.025 in	0.64 mm	2.29 mm	0.09 "	1.65 mm	0.065 in	Gold	2.29 mm	0.09 "	No Tail	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	Beryllium Copper	Solder	0.25 Ám	10 Áin

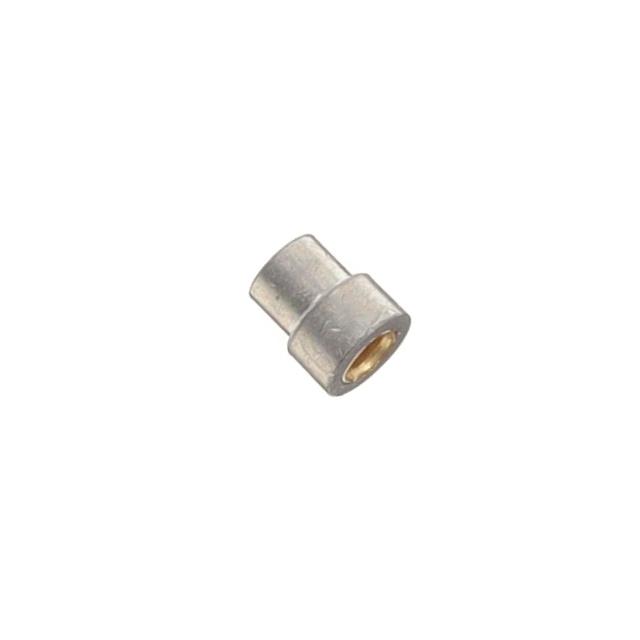

Mill-Max Manufacturing Corp. 0287-0-15-01-16-27-10-0	-55 C	125 °C	2.03 mm	0.08 in	0.025 in	0.64 mm	2.29 mm	0.09 "	1.65 mm	0.065 in	Gold	2.29 mm	0.09 "	No Tail	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	Beryllium Copper	Solder	0.76 Ám	30 Áin

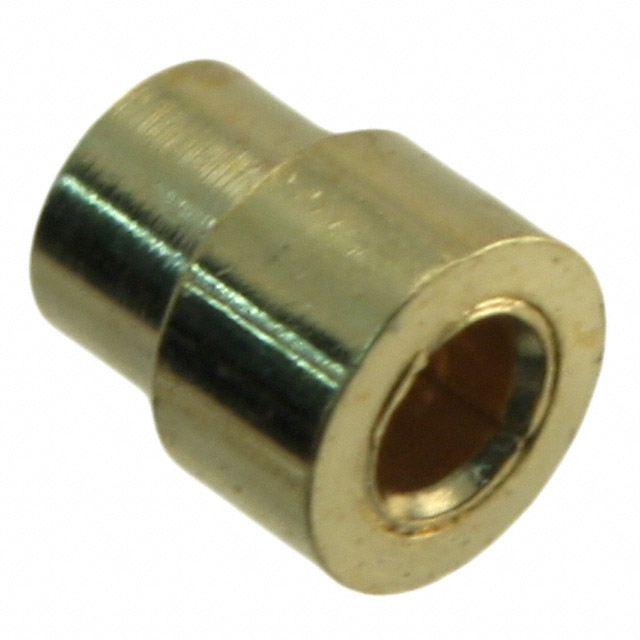

Mill-Max Manufacturing Corp. 0287-0-15-15-16-27-10-0	-55 C	125 °C	2.03 mm	0.08 in	0.025 in	0.64 mm	2.29 mm	0.09 "	1.65 mm	0.065 in	Gold	2.29 mm	0.09 "	No Tail	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	Beryllium Copper	Solder	0.76 Ám	30 Áin

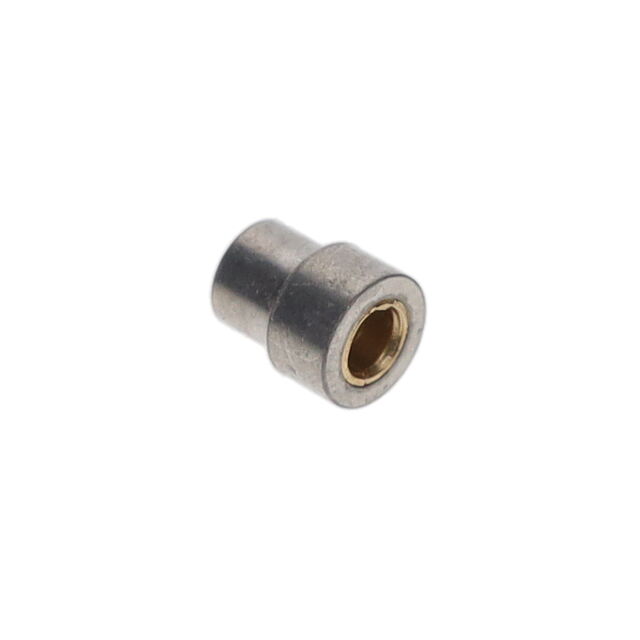

Mill-Max Manufacturing Corp. 0287-0-15-01-16-14-10-0	-55 C	125 °C	2.03 mm	0.08 in	0.025 in	0.64 mm	2.29 mm	0.09 "	1.65 mm	0.065 in	Gold	2.29 mm	0.09 "	No Tail	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	Beryllium Copper	Solder	0.25 Ám	10 Áin

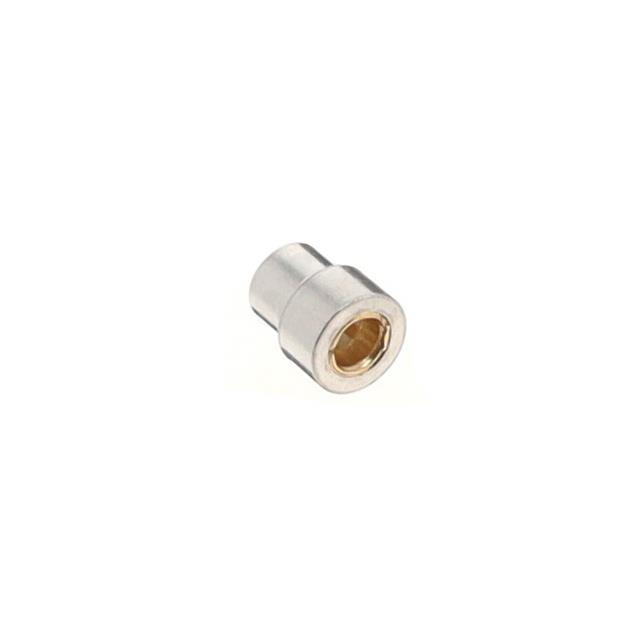

Mill-Max Manufacturing Corp. 0287-0-15-80-16-27-10-0	-55 C	125 °C	2.03 mm	0.08 in	0.025 in	0.64 mm	2.29 mm	0.09 "	1.65 mm	0.065 in	Gold	2.29 mm	0.09 "	No Tail	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	Beryllium Copper	Solder	0.76 Ám	30 Áin
Mill-Max Manufacturing Corp. 0287-0-15-80-16-80-10-0	-55 C	125 °C	2.03 mm	0.08 in	0.025 in	0.64 mm	2.29 mm	0.09 "	1.65 mm	0.065 in	Tin	2.29 mm	0.09 "	No Tail	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	Beryllium Copper	Solder	5.08 Ám	200 Áin

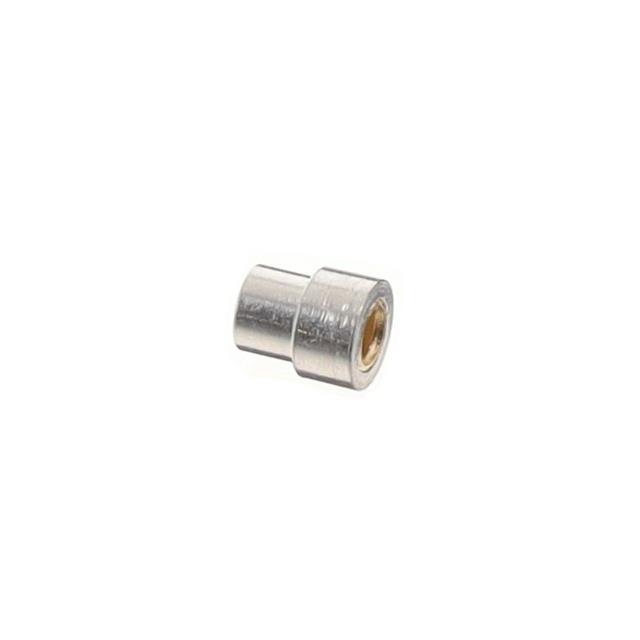

Mill-Max Manufacturing Corp. 0287-0-15-80-16-14-10-0	-55 C	125 °C	2.03 mm	0.08 in	0.025 in	0.64 mm	2.29 mm	0.09 "	1.65 mm	0.065 in	Gold	2.29 mm	0.09 "	No Tail	0.051 in	1.3 mm	0.86 mm	0.034 "	0.022 "	0.56 mm	Beryllium Copper	Solder	0.25 Ám	10 Áin
