D1U54P-W Series
Manufacturer: Murata Electronics
Beta
⌘K
AC/DC CONVERTER 12V 450W
| Part | Mounting Type | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Features | Power (Watts) | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Voltage - Isolation | Applications | Approval Agency | Current - Output 1 | Number of Outputs | Minimum Load Required |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

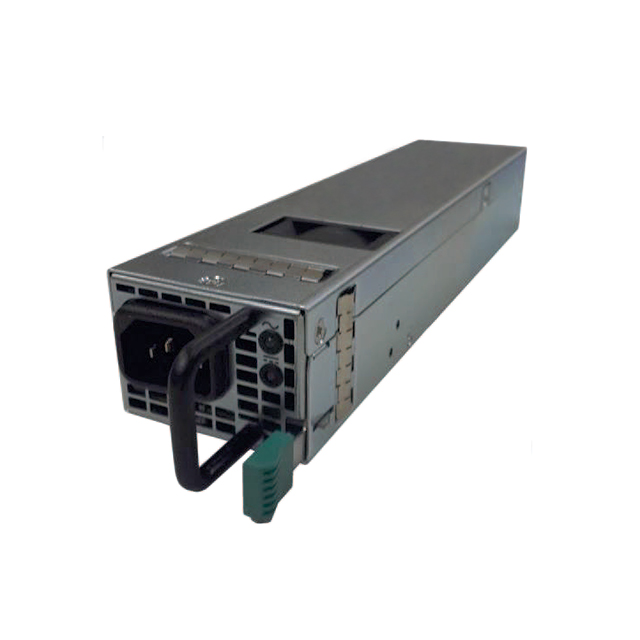

 Murata Electronics | Rack Mount | 264 VAC | 90 VAC | -5 °C | 50 °C | 91 % | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 450 W | 12 V | 2.15 in | 9 in | 1.57 " | 228.6 mm | 39.9 mm | 54.6 mm | Front End | 3000 V | ITE (Commercial) | BMSI CB cCSAus CE CQC TUV | 37.5 A | 1 | |

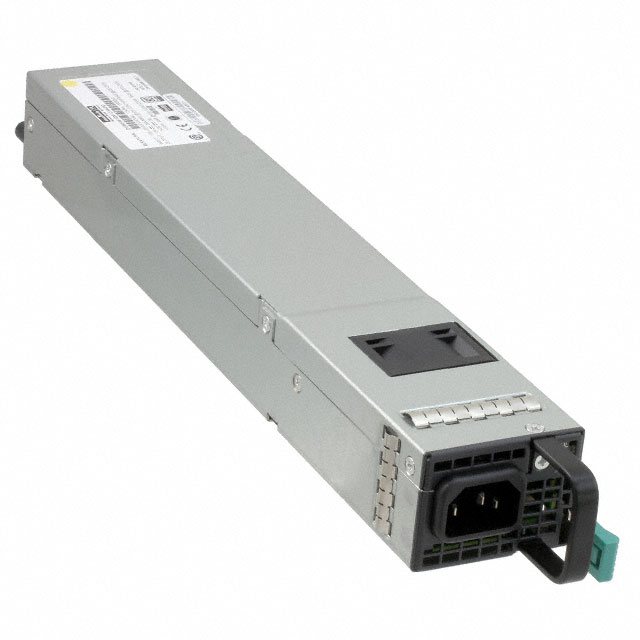

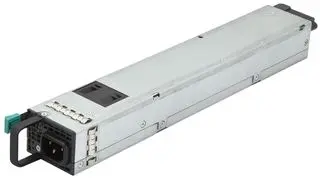

 Murata Electronics | Rack Mount | 264 VAC | 90 VAC | 0 °C | 60 °C | 94 % | Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 1200 W | 12 V | 2.15 in | 12.65 in | 1.57 " | 322 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | 100 A | 1 | ||
 Murata Electronics | Rack Mount | 264 VAC | 90 VAC | -5 °C | 45 °C | 91 % | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 1500 W | 12 V | 2.15 in | 12.66 " | 1.57 " | 321.5 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | BSMI cCSAus CE CQC TUV | 125 A | 1 | |
 Murata Electronics | Rack Mount | 264 VAC | 90 VAC | 0 °C | 60 °C | 94 % | Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 1200 W | 12 V | 2.15 in | 12.65 in | 1.57 " | 322 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | 100 A | 1 | ||
Murata Electronics | Rack Mount | 264 VAC | 90 VAC | 0 °C | 60 °C | 94 % | Hot Swappable I2C Interface Load Sharing PFC Remote Sense Standby Output Universal Input | 1200 W | 12 V | 2.15 in | 12.65 in | 1.57 " | 322 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | 100 A | 1 | ||

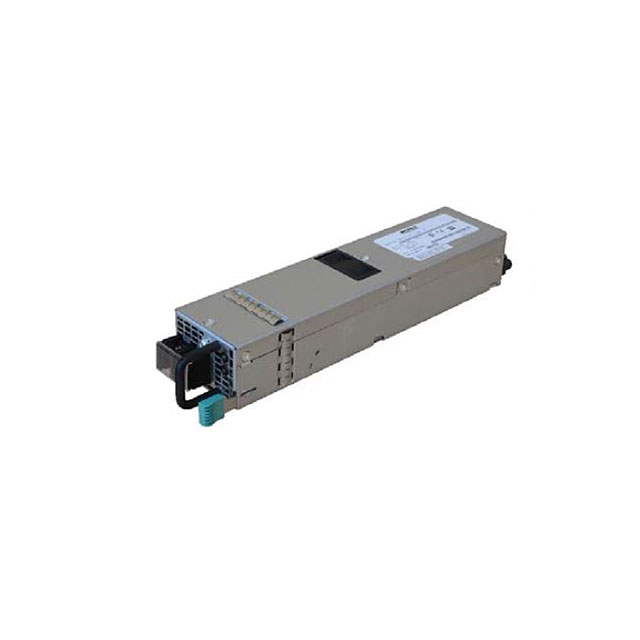

 Murata Electronics | Rack Mount | 264 VAC | 90 VAC | -5 °C | 50 °C | 94 % | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 650 W | 12 V | 2.15 in | 9 in | 1.57 " | 228.6 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | CB cCSAus CE TUV | 54.2 A | 1 | |
Murata Electronics | Rack Mount | 264 VAC | 90 VAC | -5 °C | 45 °C | 91 % | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | 1500 W | 12 V | 2.15 in | 12.66 " | 1.57 " | 321.5 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | BSMI cCSAus CE CQC TUV | 125 A | 1 | |
 Murata Electronics | Rack Mount | 264 VAC | 90 VAC | -5 °C | 50 °C | 94 % | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | 2 kW | 12 V | 2.15 in | 12.66 " | 1.57 " | 321.5 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | CB cCSAus CE CQC TUV | 166.7 A | 1 | |
Murata Electronics | Rack Mount | 264 VAC | 90 VAC | -5 °C | 50 °C | 94 % | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote Sense Standby Output Universal Input | 2 kW | 12 V | 2.15 in | 12.66 " | 1.57 " | 321.5 mm | 40 mm | 54.5 mm | Front End | 3000 V | ITE (Commercial) | CB cCSAus CE CQC TUV | 166.7 A | 1 |
