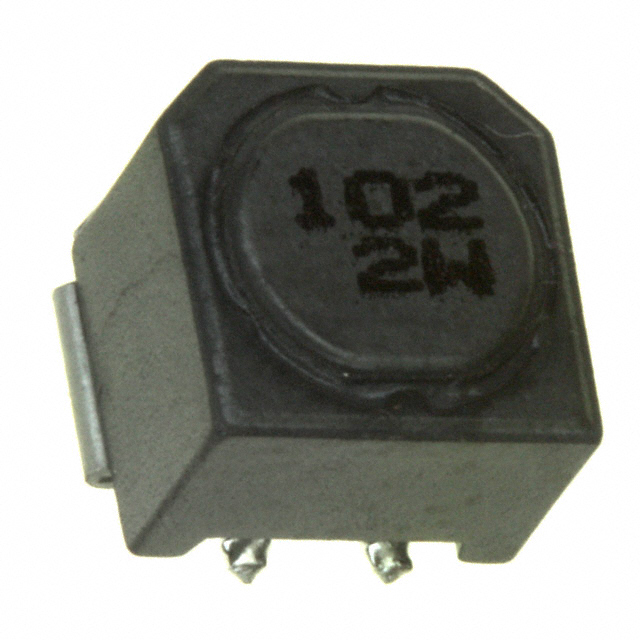

ELL-6UH Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K
FIXED IND 820UH 200MA 3.14OHM SM
| Part | Tolerance | Inductance Frequency - Test | Type | Inductance | Shielding | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Mounting Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | 820 µH | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 0.2 A | 0.197 in | 5 mm | Nonstandard | Surface Mount | |
 Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 580 mA | 0.197 in | 5 mm | Nonstandard | Surface Mount | 480 mOhm | |
Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | 390 µH | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 300 mA | 0.197 in | 5 mm | Nonstandard | Surface Mount | 1.5 Ohm |
Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | 47 µH | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 900 mA | 0.197 in | 5 mm | Nonstandard | Surface Mount | 160 mOhm |
Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 270 mA | 0.197 in | 5 mm | Nonstandard | Surface Mount | 1.68 Ohm | |
Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | 82 µH | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 650 mA | 0.197 in | 5 mm | Nonstandard | Surface Mount | 260 mOhm |
Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | 100 µH | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 600 mA | 0.197 in | 5 mm | Nonstandard | Surface Mount | 360 mOhm |
Panasonic Industrial Automation Sales | 20 % | 100 kHz | Wirewound | 22 µH | Shielded | 0.236 " | 0.252 " | 6 mm | 6.4 mm | 1.3 A | 0.197 in | 5 mm | Nonstandard | Surface Mount | 98 mOhm |
