3229 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

FORK / SPADE TONGUE TERMINAL, PLASTI-GRIP SERIES, 16 AWG, 14 AWG, 2.62 MM², M3.5, #6

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Terminal Type	Features	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Color	Termination	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Contact Finish	Stud/Tab Size	Length - Termination	Length - Termination	Insulation	Mounting Type	Material - Insulation	Contact Material	Length - Overall [x]	Length - Overall [x]	Wire Gauge	Thickness	Thickness	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Insulation Diameter [diameter]	Insulation Diameter [diameter]
TE Connectivity Raychem Cable Protection 322994	0.203 in	5.16 mm	Standard	Serrated Termination	3.68 mm	0.145 in	0.297 in	7.54 mm	Blue	Crimp	0.145 in 3.68 mm	0.105 in	2.67 mm	Tin	6 Stud	10.57 mm	0.416 in	Insulated	Free Hanging (In-Line)	Poly-Vinyl Chloride (PVC)	Copper	19.43 mm	0.765 in

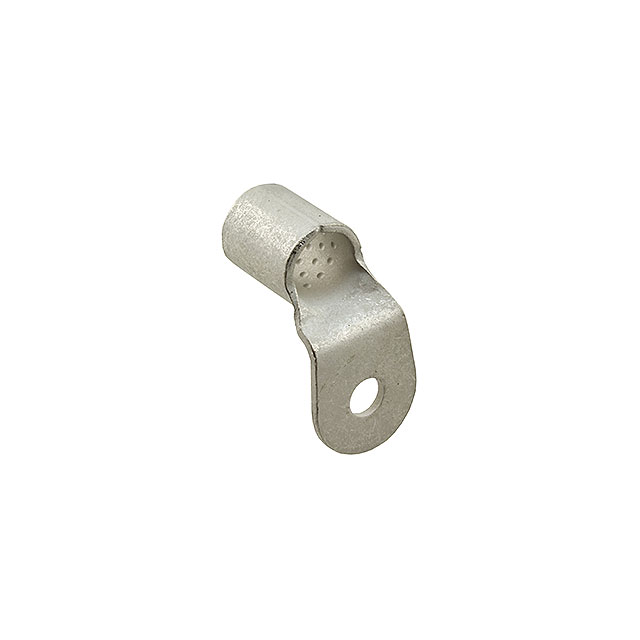

TE Connectivity Raychem Cable Protection 322905			Circular							Crimp				Tin	0.25 Stud			Non-Insulated	Free Hanging (In-Line) Right Angle		Copper			44 AWG	1.78 mm	0.07 in	20.5 mm	0.807 "

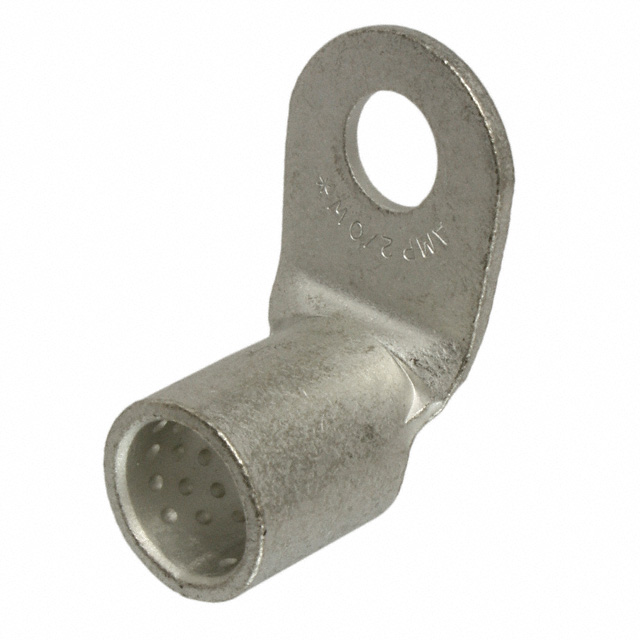

TE Connectivity Raychem Cable Protection 322912			Circular	Serrated Termination			0.926 in	23.52 mm		Crimp				Tin				Non-Insulated	Free Hanging (In-Line) Right Angle		Copper				2.03 mm	0.08 "			3/8 Stud

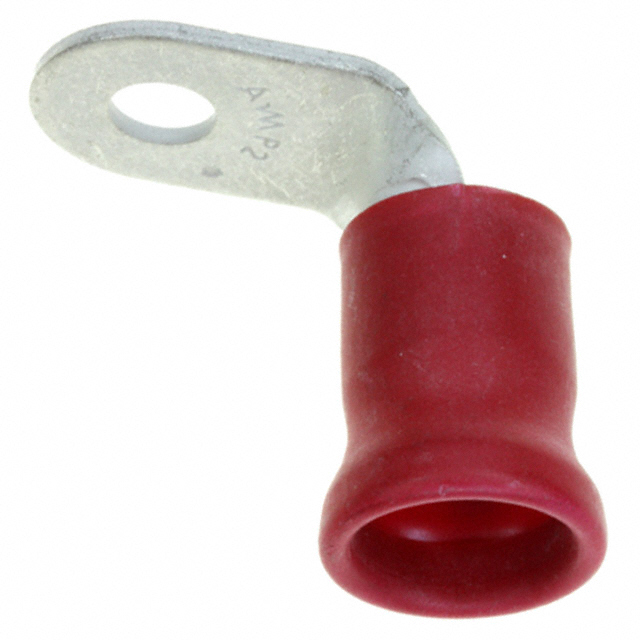

TE Connectivity Raychem Cable Protection 322900			Circular	Serrated Termination					Red	Crimp				Tin	0.25 Stud			Insulated	Free Hanging (In-Line) Right Angle	Vinyl	Copper			2 AWG	1.45 mm	0.057 in	17.15 mm	0.675 in		0.505 in	12.83 mm

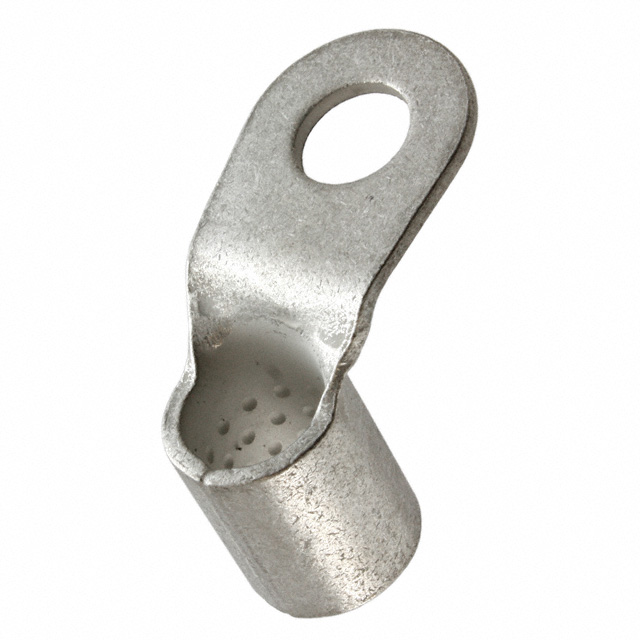

TE Connectivity Raychem Cable Protection 322906			Circular	Serrated Termination						Crimp				Tin				Non-Insulated	Free Hanging (In-Line) Right Angle		Copper			44 AWG	1.78 mm	0.07 in	20.5 mm	0.807 "	3/8 Stud
TE Connectivity Raychem Cable Protection 322915			Circular	Serrated Termination			0.926 in	23.52 mm	Yellow	Crimp				Tin				Insulated	Free Hanging (In-Line) Right Angle	Vinyl	Copper				2.03 mm	0.08 "			3/8 Stud	0.684 in	17.37 mm
