KLDHCX Series

Catalog

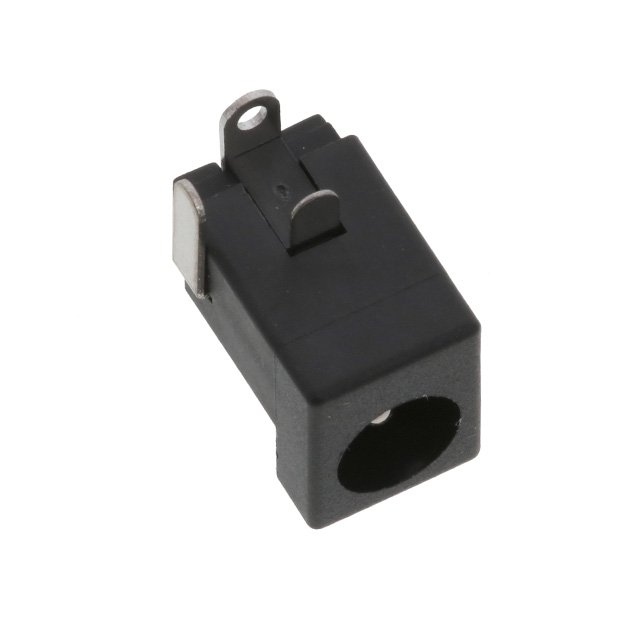

CONN PWR JACK 2.0X5.5MM SOLDER

Part	Contact Material - Plating	Housing Material	Contact Material	Body Color	Industry Recognized Mating Diameter [diameter]	Voltage - Rated	Material Flammability Rating	Termination	Mounting Type	Internal Switch(s)	Connector Type	Gender	Current Rating (Amps)	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Features	Actual Diameter [diameter]	Actual Diameter [diameter]	Shielding	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Operating Temperature [Min]	Operating Temperature [Max]
Kycon, Inc. KLDHCX-0202-A-LT	Tin	Polybutylene Terephthalate (PBT)	Brass Phosphor Bronze	Black	2 mm 5.5 mm	24 VDC	UL94 V-0	Solder	Right Angle Through Hole	Single Switch Normally Closed	Jack	Male	5 A	2	3	Locking	0.079 in 0.224 in	2 mm 5.7 mm	Unshielded
Kycon, Inc. KLDHCX-0202-A	Tin	Polybutylene Terephthalate (PBT)	Brass Phosphor Bronze	Black	2 mm 5.5 mm	24 VDC	UL94 V-0	Solder	Right Angle Through Hole	Single Switch Normally Closed	Jack	Male	5 A	2	3		0.079 in 0.252 in	2 mm 6.4 mm	Unshielded

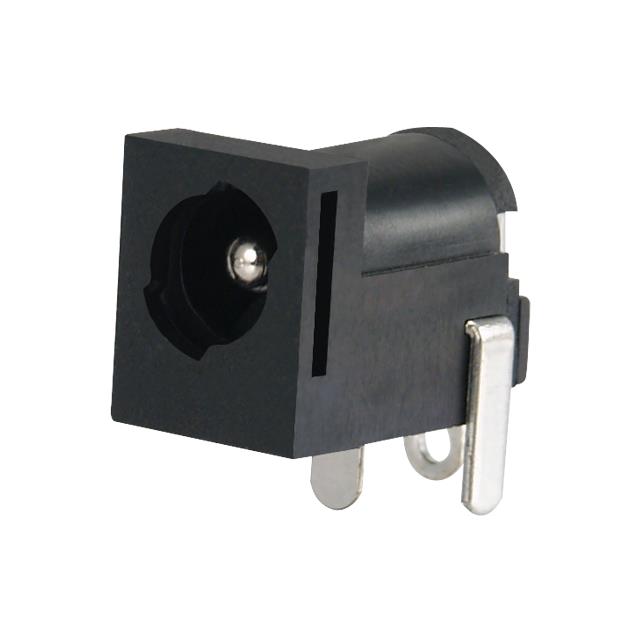

Kycon, Inc. KLDHCX-0202-AP-LT	Tin	Polybutylene Terephthalate (PBT)	Brass Phosphor Bronze	Black	2 mm 5.5 mm	24 VDC	UL94 V-0	Solder	Right Angle Through Hole	Single Switch Normally Closed	Jack	Male	5 A	2	3		0.079 in 0.224 in	2 mm 5.7 mm	Unshielded
Kycon, Inc. KLDHCX-MM-0202-BTR						24 VDC	UL94 V-0	Solder	Board Cutout Right Angle Through Hole	Single Switch Normally Closed	Jack	Male	5 A	2	3				Unshielded	0.217 in	2.5 mm	5.5 mm	0.098 in	0.236 in	2.5 mm	0.098 in	6 mm	-25 °C	70 °C
Kycon, Inc. KLDHCX-0202-B	Tin	Polybutylene Terephthalate (PBT)	Brass Phosphor Bronze	Black	2 mm 5.5 mm	24 VDC	UL94 V-0	Solder	Right Angle Through Hole	Single Switch Normally Closed	Jack	Male	5 A	2	3		0.079 in 0.252 in	2 mm 6.4 mm	Unshielded
