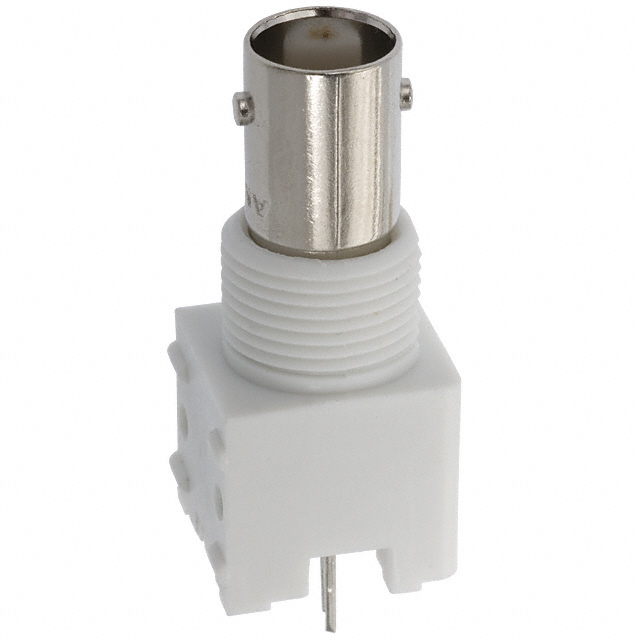

226993 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, SOLDER, 50 OHM, PHOSPHOR BRONZE
| Part | Frequency - Max [Max] | Voltage Rating | Center Contact Material | Shield Termination | Connector Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Termination | Dielectric Material | Mounting Feature | Connector Style | Body Material | Features | Impedance | Number of Ports | Mating Cycles | Includes | Body Finish | Center Contact Plating | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 4 GHz | 500 V | Phosphor Bronze | Solder | Female Socket Jack | Bayonet Lock | 85 °C | -55 °C | Panel Mount Through Hole | Solder | Polymethylpentene (PMP) | Bulkhead - Front Side Nut | BNC | Zinc | Isolated | 50 Ohms | 1 | 500 | 1 Connector 1 Lockwasher 1 Nut | Nickel | Tin | Natural Silver |
 TE Connectivity Raychem Cable Protection | 4 GHz | 500 V | Phosphor Bronze | Solder | Female Socket Jack | Bayonet Lock | 85 °C | -55 °C | Panel Mount Through Hole | Solder | Polymethylpentene (PMP) | Bulkhead - Front Side Nut | BNC | Zinc | Isolated | 50 Ohms | 1 | 500 | 1 Connector 1 Lockwasher 1 Nut | Nickel | Gold | Natural Silver |
