AMC HD Series

Manufacturer: ODU

Catalog

RECEPTACLE, FEMALE SOCKETS 7PO

Part	Color	Mounting Type	Fastening Type	Applications	Cable Opening [Max]	Cable Opening [Min]	Contact Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Ingress Protection	Contact Finish - Mating	Number of Positions	Shell Finish	Primary Material	Connector Type	Shell Material	Shell Size - Insert [custom]	Current Rating (Amps)	Mounting Feature	Number of Positions [custom]	Number of Positions [custom]	Backshell Material, Plating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Cable Opening	Cable Opening	Shell Size - Insert	Shielding	Number of Positions [custom]	Cable Opening [Max]	Cable Opening [Min]	Shell Size - Insert
ODU KCCWBM-P07WBC0-0000	Black Silver	Free Hanging (In-Line)	Threaded	Industrial Medical Military	0.197 in 5 mm	0.126 in 3.2 mm	Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	B	IP68 IP69K	Gold	7	Ruthenium over Electroless Nickel	Metal	Receptacle Female Sockets	Brass	0
ODU GSCWAM-P02WCE0-0000	Black Silver	Panel Mount	Threaded	Industrial Medical Military	0.197 in 5 mm	0.126 in 3.2 mm	Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	A	IP68 IP69K	Gold	2	Ruthenium over Electroless Nickel	Metal	Receptacle Female Sockets	Brass	0	3 A	Bulkhead - Front Side Nut
ODU KC0WDM-PD1WMM0-0000	Black Silver	Free Hanging (In-Line)	Threaded	Industrial Medical Military	0.276 " 7 mm	0.126 in 3.2 mm	Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	D	IP68 IP69K	Gold		Ruthenium over Electroless Nickel	Metal	Receptacle Female Sockets	Brass	0	1 A 5 A		2	10
ODU A1CWAM-P04XBC0-0000	Black Silver	Free Hanging (In-Line)	Detent Lock Push-Pull	Industrial Medical Military			Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	A	IP68 - Dust Tight Waterproof	Gold	4	Ruthenium over Electroless Nickel	Metal	Plug Male Pins	Brass						Brass Ruthenium over Electroless Nickel	UL94 V-0	50 µin	1.27 µm	Backshell	0.197 in	5 mm	00	Shielded
ODU GK0WBM-P07WFG0-000L	Silver	Panel Mount	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	0.276 " 7 mm	0.126 in 3.2 mm	Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	B	IP68 IP69K	Gold	7	Ruthenium over Electroless Nickel	Metal	Receptacle Female Sockets	Copper Alloy	0	5 A	Bulkhead - Front Side Nut											Shielded
ODU G6CWAM-PU4WBM0-0000	Black Silver	Panel Mount	Detent Lock Push-Pull	Industrial Medical Military			Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	A	IP68 - Dust Tight Waterproof	Gold		Ruthenium over Electroless Nickel	Metal	Receptacle Female Sockets	Brass			Bulkhead - Front Side Nut	2			UL94 V-0	50 µin	1.27 µm	Backshell	0.197 in	5 mm	00	Shielded	4
ODU C10WCM-P12XMM0-0000	Black Silver	Free Hanging (In-Line)	Push-Pull Threaded	Industrial Medical Military			Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	C	IP68 - Dust Tight Waterproof	Gold		Ruthenium over Electroless Nickel	Metal	Plug Male Pins	Brass	0	1 A 5 A		2	10	Brass Ruthenium over Electroless Nickel	UL94 V-0	50 µin	1.27 µm	Backshell	0.256 in	6.5 mm		Shielded
ODU S10YBR-PU4XFG0-0000	Black	Free Hanging (In-Line)	Push-Pull	Industrial Medical Military Testing Equipment & Measurement	0.217 in	0.118 in	Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	B	IP68 IP69K	Gold	4	Ruthenium over Electroless Nickel	Metal	Plug Male Pins	Copper Alloy	0	7 A				Chrome Copper Alloy				Backshell				Unshielded		5.5 mm	3 mm

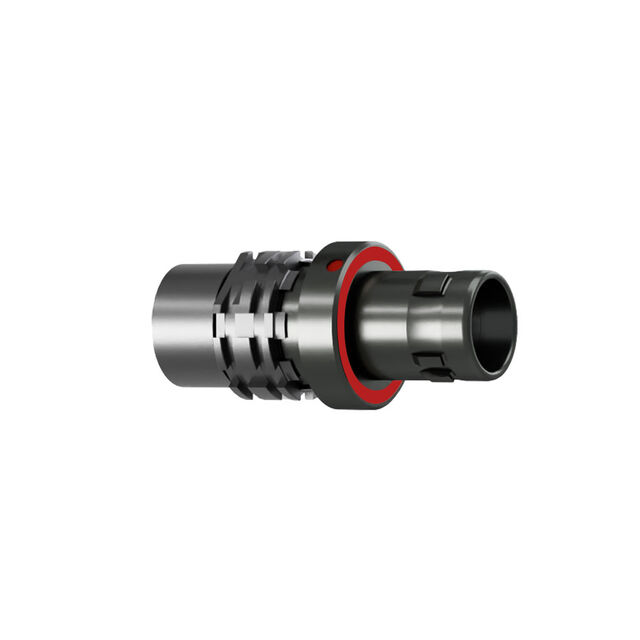

ODU A11YBR-P08XFG0-0000	Silver	Free Hanging (In-Line)	Detent Lock Push-Pull	Industrial Medical Military	0.256 in	0.126 in	Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	B	IP68 IP69K	Gold	8	Ruthenium over Electroless Nickel	Metal	Plug Male Pins	Copper Alloy		7 A												Shielded		6.5 mm	3.2 mm	1
ODU GK0WAM-P07WFG0-000L	Silver	Panel Mount	Detent Lock Push-Pull	Industrial Medical Military Testing Equipment & Measurement	0.276 " 7 mm	0.126 in 3.2 mm	Copper Alloy	Polyetheretherketone (PEEK)	-51 °C	125 °C	A	IP68 IP69K	Gold	7	Ruthenium over Electroless Nickel	Metal	Receptacle Female Sockets	Copper Alloy	0	5 A	Bulkhead - Front Side Nut											Shielded
