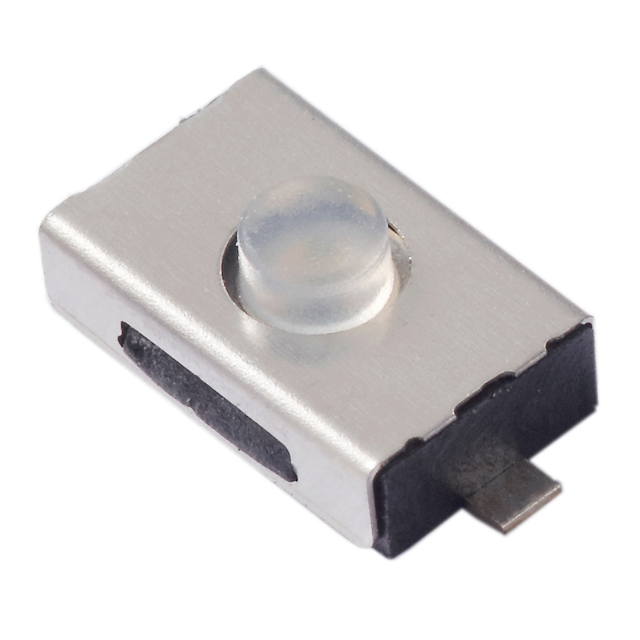

222SMV Series
Manufacturer: CTS Electrocomponents
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 32V
| Part | Switch Travel | Mechanical Life | Actuator Material | Circuit | Mounting Type | Operating Force | Contact Rating @ Voltage | Features | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Orientation | Illumination | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical [z] | Switch Function | Ingress Protection | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CTS Electrocomponents | 0.35 mm | 100000 Cycles | Silicone Rubber | SPST-NO | Surface Mount | 300 gf | 0.05 A 32 VDC | Tactile Feedback | Standard | 85 °C | -40 C | Top Actuated | Non-Illuminated | 6 mm | 3.8 mm | 2.5 mm | Off-Mom | IP57 - Dust Protected Waterproof | Gull Wing |
