696423 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

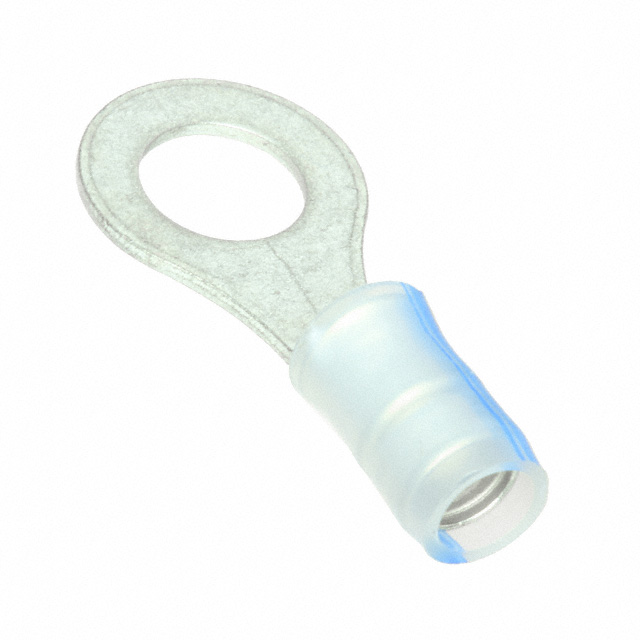

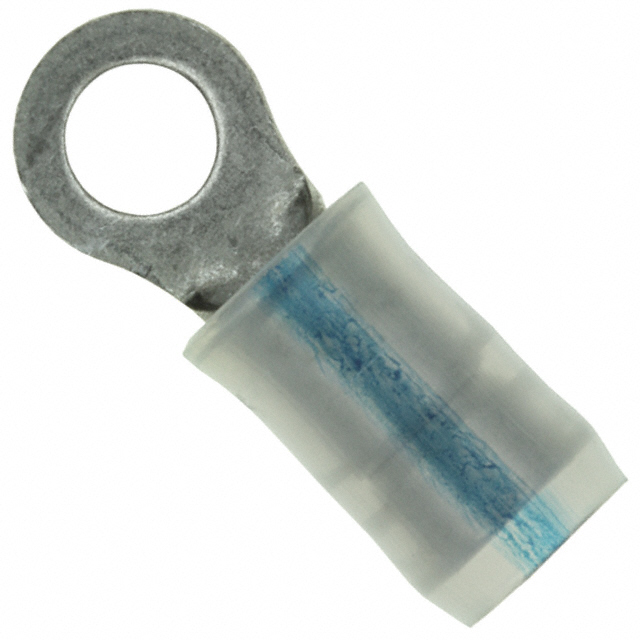

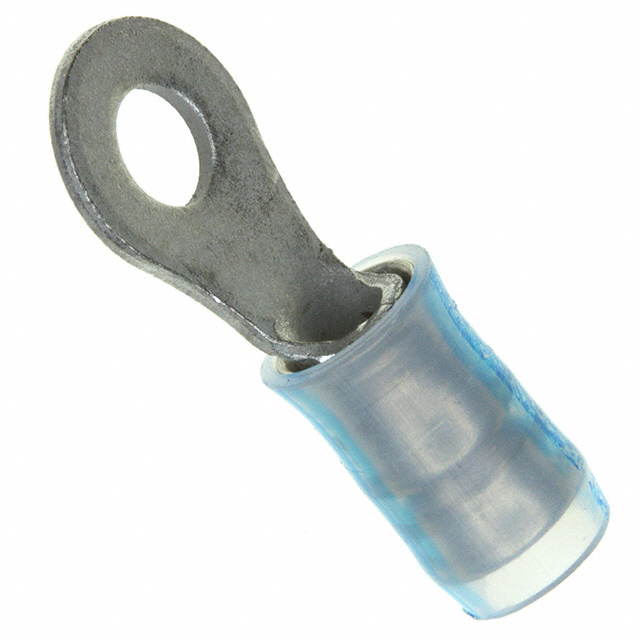

TERMINAL,PIDG PVF2 R 16-14 1/4
| Part | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Material - Insulation | Thickness | Thickness | Color | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall [x] | Length - Overall [x] | Contact Finish | Mounting Type | Insulation | Width - Outer Edges [x] | Width - Outer Edges [x] | Termination | Stud/Tab Size | Features | Terminal Type | Contact Material | Width - Outer Edges | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 mm | 2.67 mm | 0.105 " | 0.15 in | Polyvinylidene Fluoride (PVDF) | 0.79 mm | 0.031 in | Blue Stripe Natural | 14 AWG | 16 AWG | 1.083 " | 27.51 mm | Tin | Free Hanging (In-Line) | Insulated | 11.91 mm | 0.469 " | Crimp | 0.25 Stud | Radiation Resistant Serrated Termination | Circular | Copper | ||
 TE Connectivity AMP Connectors | 3.81 mm | 2.67 mm | 0.105 " | 0.15 in | Polyvinylidene Fluoride (PVDF) | 0.79 mm | 0.031 in | Blue Stripe Natural | 14 AWG | 16 AWG | 0.708 in | 17.98 mm | Tin | Free Hanging (In-Line) | Insulated | 6.35 mm | 0.25 " | Crimp | 6 Stud | Radiation Resistant Serrated Termination | Circular | Copper | ||
 TE Connectivity AMP Connectors | 3.81 mm | 2.67 mm | 0.105 " | 0.15 in | Polyvinylidene Fluoride (PVDF) | 0.79 mm | 0.031 in | Blue Stripe Natural | 14 AWG | 16 AWG | 1.223 in | 31.06 mm | Tin | Free Hanging (In-Line) | Insulated | Crimp | 0.375 Stud | Radiation Resistant Serrated Termination | Circular | Copper | 13.49 mm | 0.531 in | ||
TE Connectivity AMP Connectors | 3.81 mm | 2.67 mm | 0.105 " | 0.15 in | Polyvinylidene Fluoride (PVDF) | 0.79 mm | 0.031 in | Blue Stripe Natural | 14 AWG | 16 AWG | 1.298 in | 32.97 mm | Tin | Free Hanging (In-Line) | Insulated | 18.11 mm | 0.713 in | Crimp | 0.5 Stud | Radiation Resistant Serrated Termination | Circular | Copper | ||
 TE Connectivity AMP Connectors | 3.81 mm | 2.67 mm | 0.105 " | 0.15 in | Polyvinylidene Fluoride (PVDF) | 0.79 mm | 0.031 in | Blue Stripe Natural | 14 AWG | 16 AWG | 0.849 in | 21.56 mm | Tin | Free Hanging (In-Line) | Insulated | 7.92 mm | 0.312 in | Crimp | 6 Stud | Radiation Resistant Serrated Termination | Circular | Copper |
