MS6038 Series

Catalog

FAN AXIAL 60X38MM 24VDC WIRE

Part	Material - Frame	Material - Blade	Current Rating (Amps)	Weight [custom]	Weight [custom]	Fan Type	Air Flow	Air Flow	Voltage - Rated	Static Pressure	Static Pressure	RPM	Bearing Type	Termination	Noise	Size / Dimension [z]	Size / Dimension [x]	Ingress Protection	Width [y]	Features
Mechatronics Fan Group MS6038H24B1+6-FSR-2EM	Plastic	Plastic	580 mA	0.231 lb	104.78 g	Tubeaxial	1.62 mł/min	58 CFM	24 VDC	1.6 in H2O	398.6 Pa	11000 RPM	Ball	4 Wire Leads	59 dB(A)	60 mm	60 mm	IP68 - Dust Tight Waterproof	38 mm	Auto Restart PWM Control Speed Sensor (Tach)

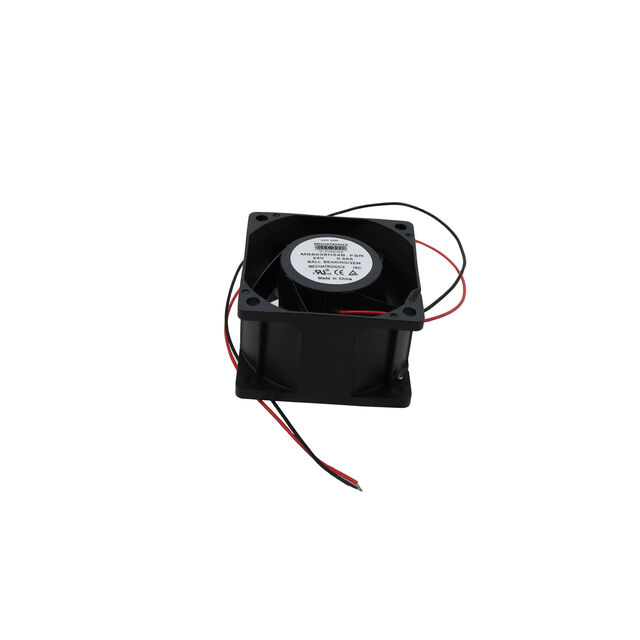

Mechatronics Fan Group MS6038H24B-FSR-2EM	Plastic	Plastic	580 mA	0.231 lb	104.78 g	Tubeaxial	1.62 mł/min	58 CFM	24 VDC	1.6 in H2O	398.6 Pa	11000 RPM	Ball	2 Wire Leads	59 dB(A)	60 mm	60 mm	IP68 - Dust Tight Waterproof	38 mm	Auto Restart
Mechatronics Fan Group MS6038M48B1+6-FSR-2EM	Plastic	Plastic	140 mA	0.231 lb	104.78 g	Tubeaxial	1.23 m³/min	44 CFM	48 VDC	0.81 in H2O	201.8 Pa	8000 RPM	Ball	4 Wire Leads	54 dB	60 mm	60 mm	IP68 - Dust Tight Waterproof	38 mm	Auto Restart PWM Control Speed Sensor (Tach)

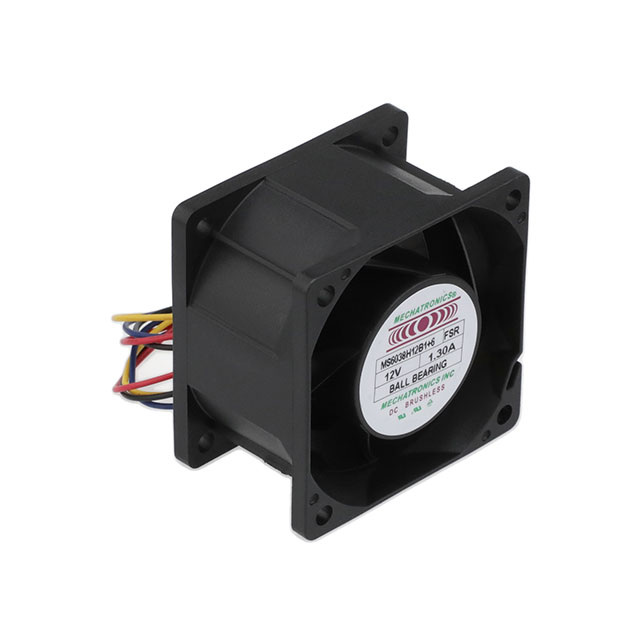

Mechatronics Fan Group MS6038H12B1+6-FSR	Plastic	Plastic	1.3 A	0.231 lb	104.78 g	Tubeaxial	1.62 mł/min	58 CFM	12 VDC	1.6 in H2O	398.6 Pa	11000 RPM	Ball	4 Wire Leads	59 dB(A)	60 mm	60 mm		38 mm	Auto Restart PWM Control Speed Sensor (Tach)
Mechatronics Fan Group MS6038M12B-FSR-2EM	Plastic	Plastic	580 mA	0.231 lb	104.78 g	Tubeaxial	1.23 m³/min	44 CFM	12 VDC	0.81 in H2O	201.8 Pa	8000 RPM	Ball	2 Wire Leads	54 dB	60 mm	60 mm	IP68 - Dust Tight Waterproof	38 mm	Auto Restart
Mechatronics Fan Group MS6038M24B-FSR-2EM	Plastic	Plastic	320 mA	0.231 lb	104.78 g	Tubeaxial	1.23 m³/min	44 CFM	24 VDC	0.81 in H2O	201.8 Pa	8000 RPM	Ball	2 Wire Leads	54 dB	60 mm	60 mm	IP68 - Dust Tight Waterproof	38 mm	Auto Restart

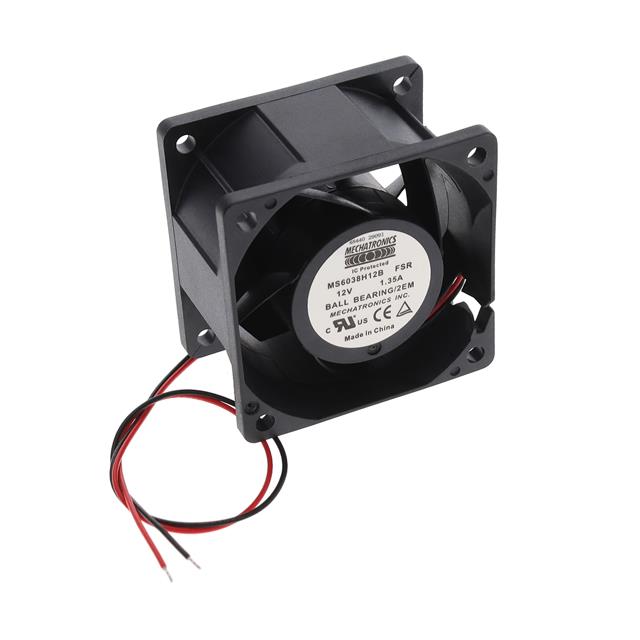

Mechatronics Fan Group MS6038H12B-FSR-2EM	Plastic	Plastic	1.3 A	0.231 lb	104.78 g	Tubeaxial	1.62 mł/min	58 CFM	12 VDC	1.6 in H2O	398.6 Pa	11000 RPM	Ball	2 Wire Leads	59 dB(A)	60 mm	60 mm	IP68 - Dust Tight Waterproof	38 mm	Auto Restart
Mechatronics Fan Group MS6038H48B1+6-FSR	Plastic	Plastic	0.29 A	0.231 lb	104.78 g	Tubeaxial	1.62 mł/min	58 CFM	48 VDC	1.6 in H2O	398.6 Pa	11000 RPM	Ball	4 Wire Leads	59 dB(A)	60 mm	60 mm		38 mm	Auto Restart PWM Control Speed Sensor (Tach)
Mechatronics Fan Group MS6038H24B1+6-FSR	Plastic	Plastic	580 mA	0.231 lb	104.78 g	Tubeaxial	1.62 mł/min	58 CFM	24 VDC	1.6 in H2O	398.6 Pa	11000 RPM	Ball	4 Wire Leads	59 dB(A)	60 mm	60 mm		38 mm	Auto Restart PWM Control Speed Sensor (Tach)
Mechatronics Fan Group MS6038H48B-FSR-2EM	Plastic	Plastic	0.29 A	0.231 lb	104.78 g	Tubeaxial	1.62 mł/min	58 CFM	48 VDC	1.6 in H2O	398.6 Pa	11000 RPM	Ball	2 Wire Leads	59 dB(A)	60 mm	60 mm	IP68 - Dust Tight Waterproof	38 mm	Auto Restart
