R32770 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
2.4 MM / STRAIGHT MALE-MALE ADAP
| Part | Center Contact Material | Body Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Dielectric Material | Center Contact Plating | Center Gender | Style | Adapter Type | Adapter Series [Max] | Adapter Series [Min] | Conversion Type | Convert From (Adapter End) | Convert From (Adapter End) | Mounting Type | Frequency - Max [Max] | Convert To (Adapter End) [custom] | Impedance | Convert To (Adapter End) | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

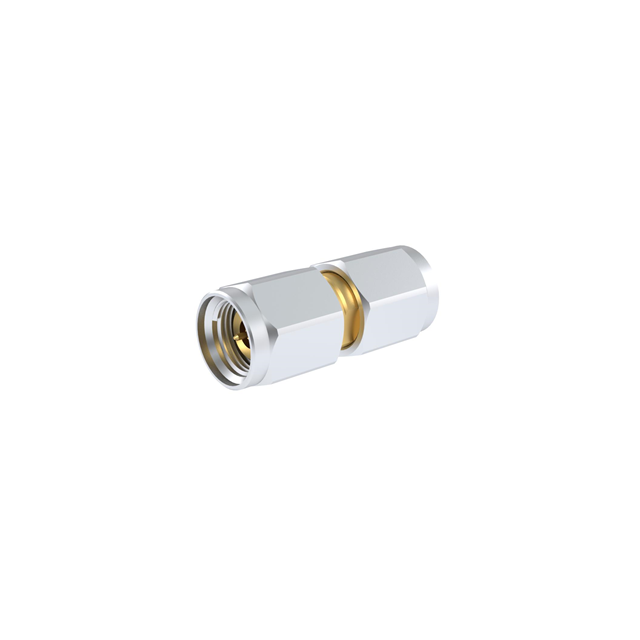

 Radiall USA, Inc. | Beryllium Copper | Beryllium Copper | 500 | -65 ░C | 165 °C | Gold | Polyetheretherketone (PEEK) | Gold | Male to Male | Straight | Plug to Plug | 2.4 mm | 2.4 mm | Same Series | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | Free Hanging (In-Line) | 50 GHz | 2.4 mm | 50 Ohms | ||

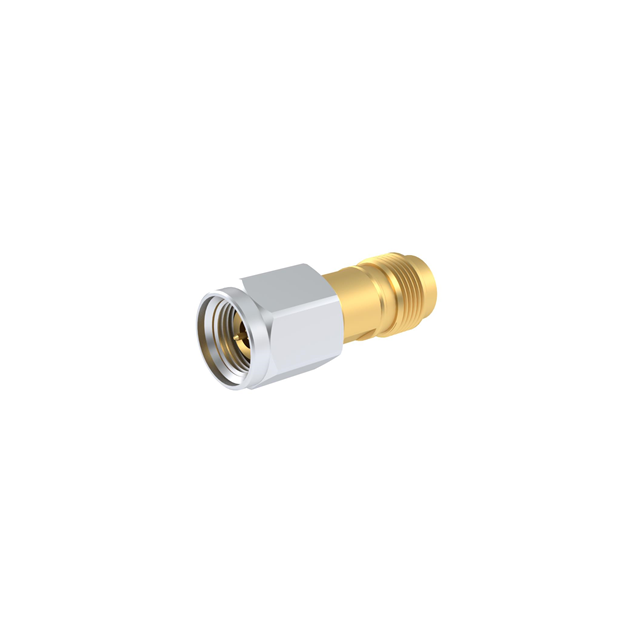

 Radiall USA, Inc. | Beryllium Copper | Beryllium Copper | 500 | -65 ░C | 165 °C | Gold | Polyetheretherketone (PEEK) | Gold | Straight | Plug to Jack | 2.4 mm | 2.4 mm | Same Series | APC-2.4 Male Pin OS-50 Plug | 2.4 mm | Free Hanging (In-Line) | 50 GHz | 50 Ohms | 2.4 mm | (APC-2.4 OS-50) Jack Female Socket |
