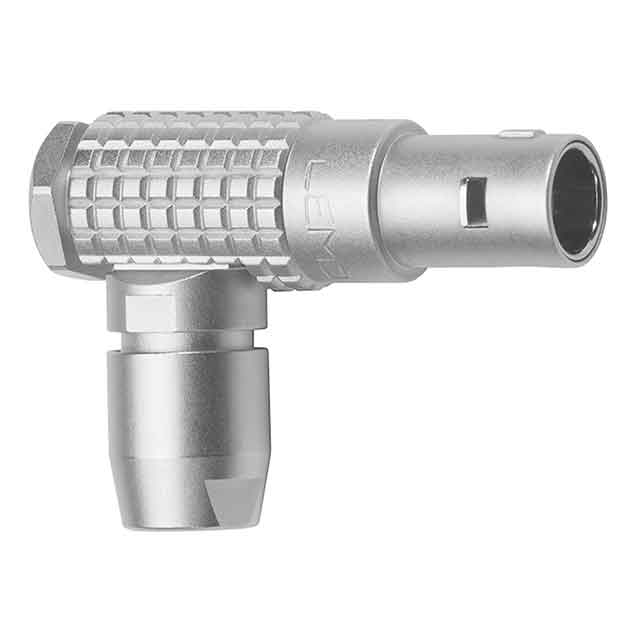

FPG.2B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 6P GOLD SLDR CUP

Part	Fastening Type	Number of Positions	Connector Type	Contact Finish - Mating	Shielding	Shell Size - Insert	Backshell Material, Plating	Color	Features	Insert Material	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Primary Material	Ingress Protection	Material Flammability Rating	Shell Material	Contact Material	Current Rating (Amps)	Shell Finish	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Orientation [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination
LEMO FPG.2B.306.CLAD72	Push-Pull	6	Plug Male Pins	Gold	Shielded	306	Brass Chrome	Silver	Backshell	Polyetheretherketone (PEEK)	0.205 in	4.2 mm	5.2 mm	0.165 "	Metal	IP50 - Dust Protected	UL94 V-0	Brass	Brass	12 Amps	Chrome	39.4 µin	1 µm	G	Free Hanging (In-Line) Right Angle	-55 C	250 °C
LEMO FPG.2B.314.CLAD52Z	Push-Pull	14	Plug Male Pins	Gold	Shielded	314	Brass Chrome	Silver	Backshell	Polyetheretherketone (PEEK)	0.205 in	4.2 mm	5.2 mm	0.165 "	Metal	IP50 - Dust Protected	UL94 V-0	Brass	Brass	6.5 A	Chrome	39.4 µin	1 µm	G	Free Hanging (In-Line) Right Angle	-55 C	250 °C
LEMO FPG.2B.302.CYCD62	Push-Pull	2	Plug Male Pins	Gold	Shielded	302	Brass Chrome	Silver	Backshell	Polyetheretherketone (PEEK)	0.205 in	4.2 mm	5.2 mm	0.165 "	Metal	IP50 - Dust Protected	UL94 V-0	Brass	Brass	25 A	Chrome	39.4 µin	1 µm	G	Free Hanging (In-Line) Right Angle	-55 C	250 °C	Crimp
