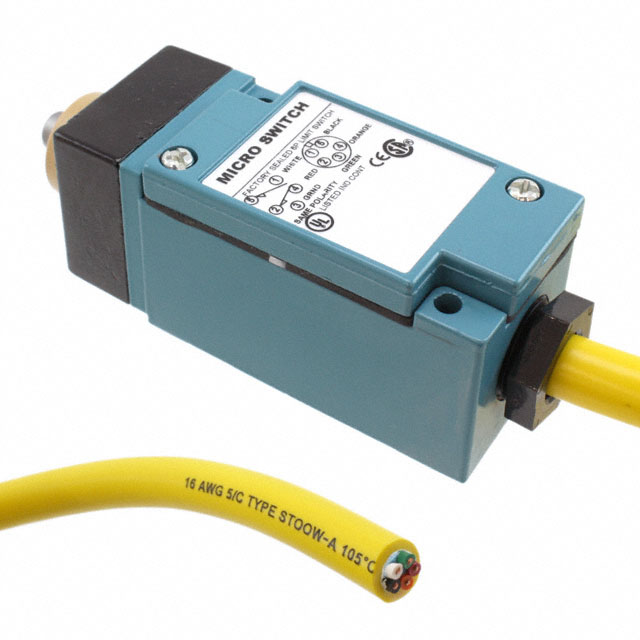

LSYCC Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 10A 120V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Differential Travel | Differential Travel | Termination Style | Operating Force | Actuator Type | Switch Function | Voltage Rating - AC | Pretravel | Pretravel | Mounting Type | Circuit | Overtravel | Overtravel | Voltage Rating - DC | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 121 °C | -12 °C | 10 A 800 mA | 0.5 mm | 0.02 in | Plug In | 1814 gf | Round (Pin Plunger) | On-Mom | 120 V | 0.071 in | 1.8 mm | Chassis Mount | DPDT (DB/DM) | 4.8 mm | 0.19 in | 115 V | ||
 Honeywell Sensing and Productivity Solutions | 105 ░C | -12 °C | 10 A 800 mA | 0.4 mm | 0.016 " | Cable Leads | 1814 gf | Round (Pin Plunger) | On-Mom | 120 V | 0.071 in | 1.8 mm | Chassis Mount | SPDT (DB/DM) | 4.8 mm | 0.19 in | 115 V | IP67 - Dust Tight Waterproof | |
Honeywell Sensing and Productivity Solutions | 93 °C | -12 °C | 10 A 800 mA | 0.4 mm | 0.016 " | Plug In | 1814 gf | Round (Pin Plunger) | On-Mom | 120 V | 0.071 in | 1.8 mm | Chassis Mount | SPDT (DB/DM) | 4.8 mm | 0.19 in | 115 V | Status Indicator |
