68466 Series

Catalog

BERGSTIK II .100CC DR ST RAIGHT

Part	Insulation Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type	Contact Finish - Post	Number of Positions	Termination	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Shape	Number of Positions Loaded	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Shrouding	Material Flammability Rating	Insulation Height	Insulation Height	Contact Finish - Mating
Amphenol ICC (FCI) 68466-433HLF	Black	Header	125 °C	-65 ░C	1	Male Pin	Tin	33	Solder	0.697 in	17.7 mm	Through Hole	2.54 çm	100 çin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 68466-412HLF	Black	Header	125 °C	-65 ░C	1	Male Pin	Tin	12	Solder	0.697 in	17.7 mm	Through Hole	2.54 çm	100 çin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 68466-123HLF	Black	Header	125 °C	-65 ░C	1	Male Pin		23	Solder	0.697 in	17.7 mm	Through Hole	0.76 Ám	30 Áin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 68466-128HLF	Black	Header	125 °C	-65 ░C	1	Male Pin		28	Solder	0.697 in	17.7 mm	Through Hole	0.76 Ám	30 Áin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 68466-107HLF	Black	Header	125 °C	-65 ░C	1	Male Pin		7	Solder	0.697 in	17.7 mm	Through Hole	0.76 Ám	30 Áin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™

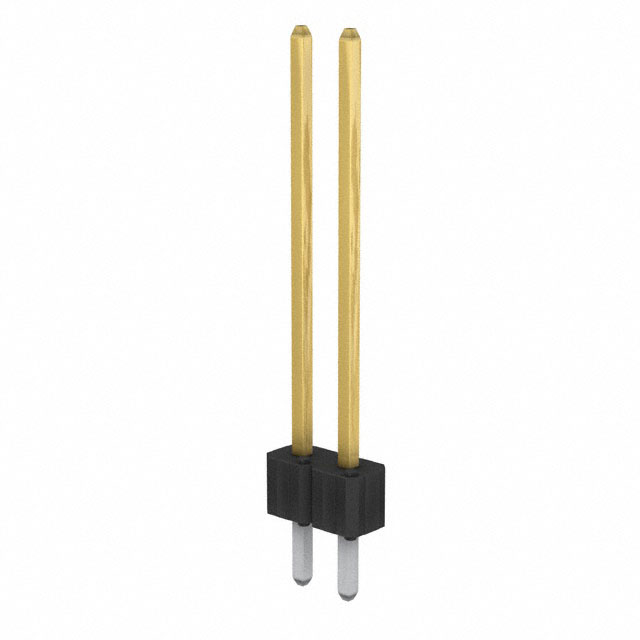

Amphenol ICC (FCI) 68466-102HLF	Black	Header	125 °C	-65 ░C	1	Male Pin		2	Solder	0.697 in	17.7 mm	Through Hole	0.76 Ám	30 Áin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 68466-126HLF	Black	Header	125 °C	-65 ░C	1	Male Pin		26	Solder	0.697 in	17.7 mm	Through Hole	0.76 Ám	30 Áin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 68466-135HLF	Black	Header	125 °C	-65 ░C	1	Male Pin		35	Solder	0.697 in	17.7 mm	Through Hole	0.76 Ám	30 Áin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 68466-431HLF	Black	Header	125 °C	-65 ░C	1	Male Pin	Tin	31	Solder	0.697 in	17.7 mm	Through Hole	2.54 çm	100 çin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm
Amphenol ICC (FCI) 68466-429HLF	Black	Header	125 °C	-65 ░C	1	Male Pin	Tin	29	Solder	0.697 in	17.7 mm	Through Hole	2.54 çm	100 çin	3 A	0.925 in	23.5 mm	Square	All	Push-Pull	0.1 in	2.54 mm	0.128 "	3.25 mm	Phosphor Bronze	Unshrouded	UL94 V-0	0.1 in	2.54 mm
