31065103 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

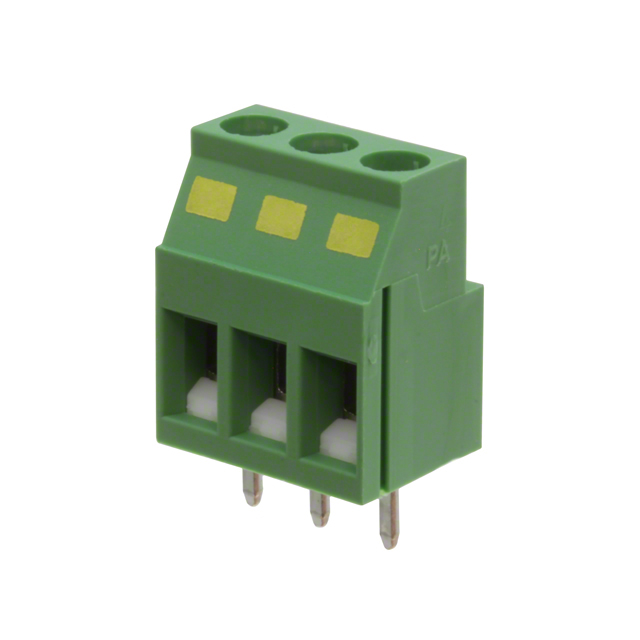

SCREW TYPE, TERMINAL BLOCK, RIGH
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Torque - Screw | Torque - Screw | Clamp Material - Plating [custom] | Clamp Material - Plating [custom] | Screw Thread | Contact Material - Plating | Color | Voltage | Mating Orientation | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Positions Per Level | Pitch | Pitch | Wire Termination | Features | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | -40 C | 105 ░C | Zinc Plated | 6 Lb-In | 0.68 Nm | Nickel Plated | Copper Alloy | M3 | Copper Alloy - Tin Plated | Green | 300 VDC | Horizontal with Board | Through Hole | 22 AWG | 12 AWG | 1 | 3 | 0.197 in | 5 mm | Screw - Leaf Spring Wire Guard | Interlocking (Side) | 20 A |
