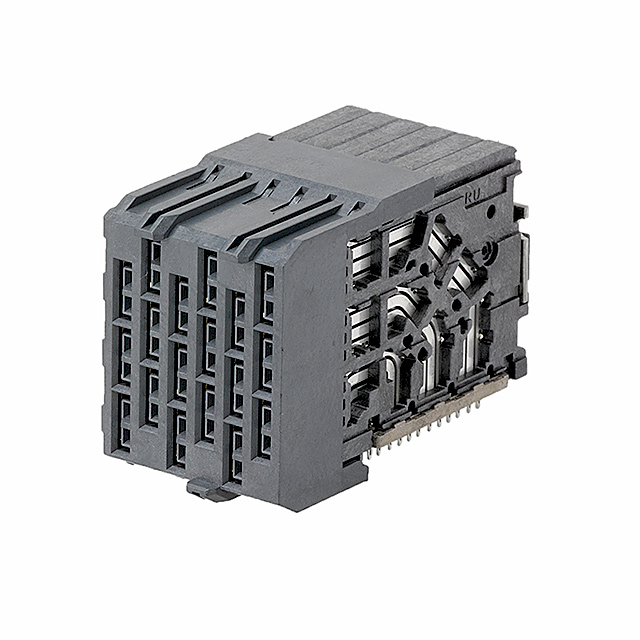

171510 Series
Manufacturer: Molex
Beta
⌘K
CONN DC 3X8 ORTHO DC W/PWR
| Part | Number of Columns | Number of Positions | Connector Type | Connector Usage | Termination | Current Rating (Amps) | Pitch [x] | Pitch [x] | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Color | Number of Rows | Connector Style | Voltage Rating | Number of Positions Loaded | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Features | Contact Layout, Typical |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 8 | 52 | Blade Sockets Female Sockets Receptacle | Daughtercard Orthogonal | Press-Fit | 0.75 A | 0.092 in | 2.35 mm | UL94 V-0 | 85 °C | -55 °C | Gold | Black | 6 | Impel™ | 150 VAC | All | Through Hole Right Angle | 0.76 Ám | 30 Áin | ||
 Molex | 6 | 36 | Blade Sockets Female Sockets Receptacle | Daughtercard Orthogonal | Press-Fit | 0.75 A | 0.092 in | 2.35 mm | UL94 V-0 | 85 °C | -55 °C | Gold | Black | 6 | Impel™ | 150 VAC | All | Through Hole Right Angle | 0.76 Ám | 30 Áin | Shielded | 18 Differential Pairs |
