10082201 Series

Catalog

CONN HEADER R/A 6POS 2.54MM

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Connector Type	Material Flammability Rating	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Features	Contact Finish - Mating	Number of Positions Loaded	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shrouding	Contact Material	Insulation Color	Number of Rows	Mounting Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)
Amphenol ICC (FCI) 10082201-104A06LF	78.7 µin	2 µm	Thermoplastic	0.76 Ám	30 Áin	2.4 mm	0.094 "	0.118 in	3 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm	Pick and Place	Gold GXT™	All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	6	0.266 in	6.75 mm	3 A

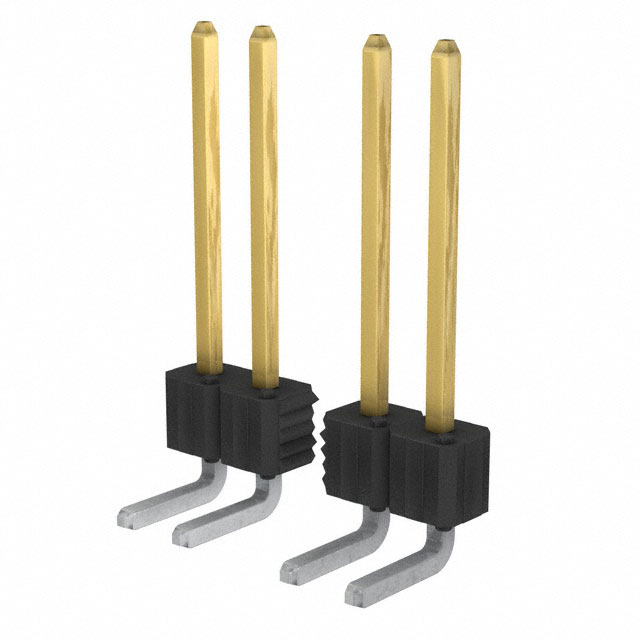

Amphenol ICC (FCI) 10082201-105-06LF	78.7 µin	2 µm	Thermoplastic	0.76 Ám	30 Áin	2.4 mm	0.094 "	0.118 in	3 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm		Gold GXT™	All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	6	0.457 in	11.6 mm	3 A
Amphenol ICC (FCI) 10082201-101-10LF	78.7 µin	2 µm	Thermoplastic	0.76 Ám	30 Áin	2.4 mm	0.094 "	0.098 in	2.5 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm		Gold GXT™	All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	10	0.23 in	5.84 mm	3 A
Amphenol ICC (FCI) 10082201-404-10LF	78.7 µin	2 µm	Thermoplastic	2 µm	78.7 µin	2.4 mm	0.094 "	0.118 in	3 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm			All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	10	0.266 in	6.75 mm	3 A
Amphenol ICC (FCI) 10082201-101-07LF	78.7 µin	2 µm	Thermoplastic	0.76 Ám	30 Áin	2.4 mm	0.094 "	0.098 in	2.5 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm		Gold GXT™	All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	7	0.23 in	5.84 mm	3 A

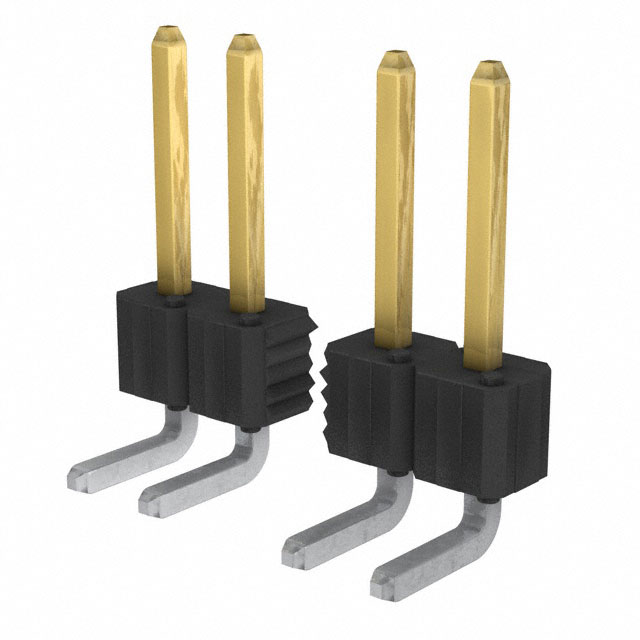

Amphenol ICC (FCI) 10082201-102-36LF	78.7 µin	2 µm	Thermoplastic	0.76 Ám	30 Áin	2.4 mm	0.094 "	0.098 in	2.5 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm		Gold GXT™	All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	36	0.266 in	6.75 mm	3 A

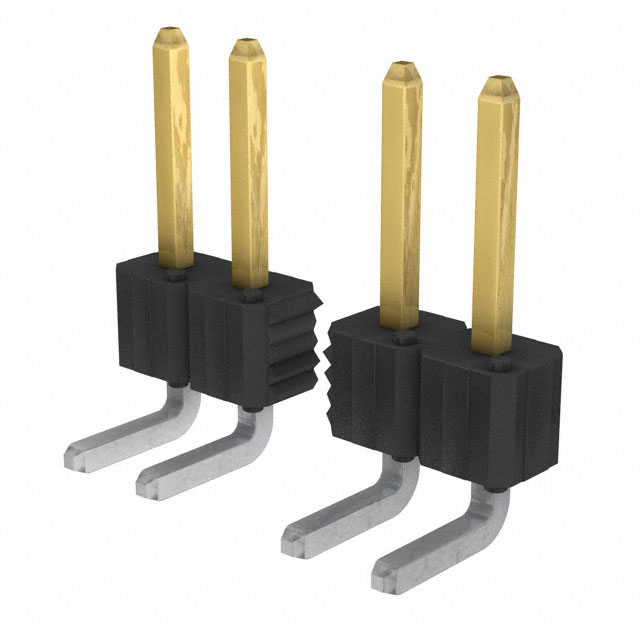

Amphenol ICC (FCI) 10082201-101-06LF	78.7 µin	2 µm	Thermoplastic	0.76 Ám	30 Áin	2.4 mm	0.094 "	0.098 in	2.5 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm		Gold GXT™	All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	6	0.23 in	5.84 mm	3 A
Amphenol ICC (FCI) 10082201-104-20LF	78.7 µin	2 µm	Thermoplastic	0.76 Ám	30 Áin	2.4 mm	0.094 "	0.118 in	3 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm		Gold GXT™	All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	20	0.266 in	6.75 mm	3 A

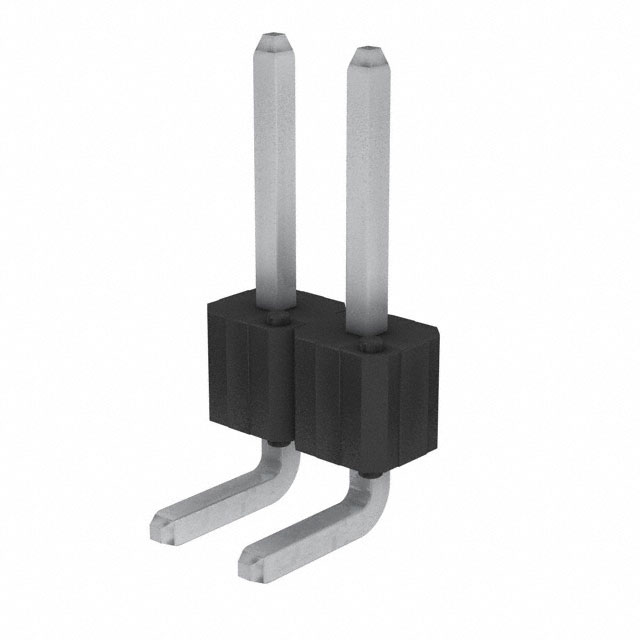

Amphenol ICC (FCI) 10082201-401-02LF	78.7 µin	2 µm	Thermoplastic	2 µm	78.7 µin	2.4 mm	0.094 "	0.098 in	2.5 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm			All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	2	0.23 in	5.84 mm	3 A

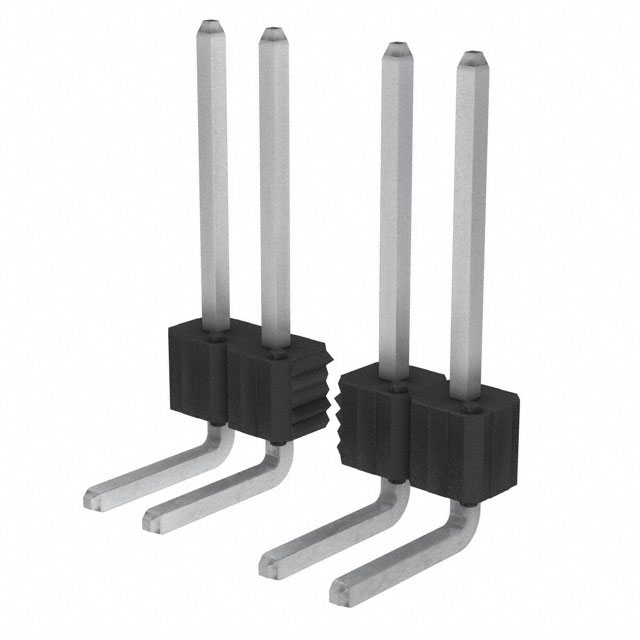

Amphenol ICC (FCI) 10082201-406K06LF	78.7 µin	2 µm	Thermoplastic	2 µm	78.7 µin	2.4 mm	0.094 "	0.169 in	4.3 mm	Tin	Header Breakaway	UL94 V-0	Push-Pull	Male Pin	0.1 "	2.54 mm			All	Square	130 °C	-65 ░C	Solder	Unshrouded	Phosphor Bronze	Black	1	Right Angle Through Hole	6	0.374 in	9.5 mm	3 A
