221128 Series

Catalog

CONN BNC PLUG STR 50 OHM CRIMP

Part	Mounting Type	Contact Termination	Cable Group	Body Finish	Housing Color	Insertion Loss	Center Contact Material	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Impedance	Number of Ports	Mating Cycles	Shield Termination	Voltage Rating	Fastening Type	Body Material	Center Contact Plating	Connector Type
TE Connectivity Raychem Cable Protection 1-221128-1	Free Hanging (In-Line)	Crimp	59A 59B 62 62A 62B RG-59	Nickel	Silver	0.2 dB	Brass	BNC	85 °C	-55 °C	4 GHz	50 Ohms	1	500	Crimp	500 V	Bayonet Lock	Zinc	Gold	Male Pin Plug
TE Connectivity Raychem Cable Protection 2-221128-3	Free Hanging (In-Line)	Crimp	187 RG-179	Nickel	Silver	0.2 dB	Brass	BNC	85 °C	-55 °C	4 GHz	50 Ohms	1	500	Crimp	500 V	Bayonet Lock	Zinc	Gold	Male Pin Plug
TE Connectivity Raychem Cable Protection 221128-2	Free Hanging (In-Line)	Crimp	59A 59B 62 62A 62B RG-59	Nickel	Silver	0.2 dB	Brass	BNC	85 °C	-55 °C	4 GHz	50 Ohms	1	500	Crimp	500 V	Bayonet Lock	Zinc	Gold	Male Pin Plug

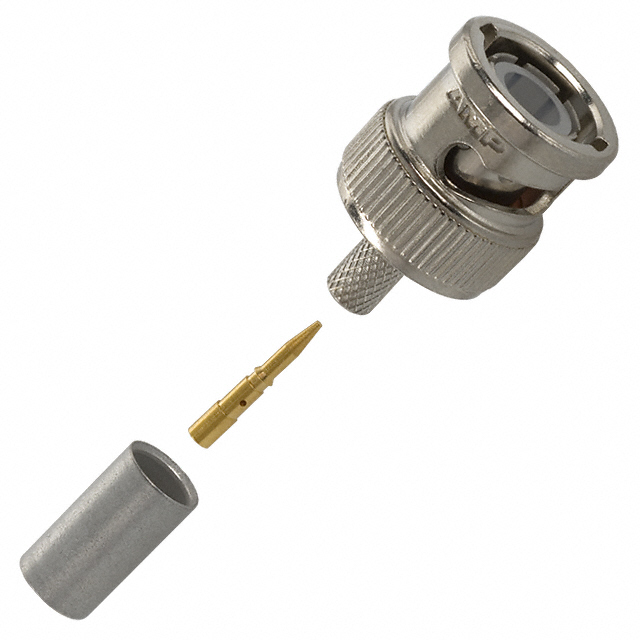

TE Connectivity Raychem Cable Protection 2-221128-7	Free Hanging (In-Line)	Crimp	9907 Belden 89907 RG-141	Nickel	Silver	0.2 dB	Brass	BNC	85 °C	-55 °C	4 GHz	50 Ohms	1	500	Crimp	500 V	Bayonet Lock	Zinc	Gold	Male Pin Plug

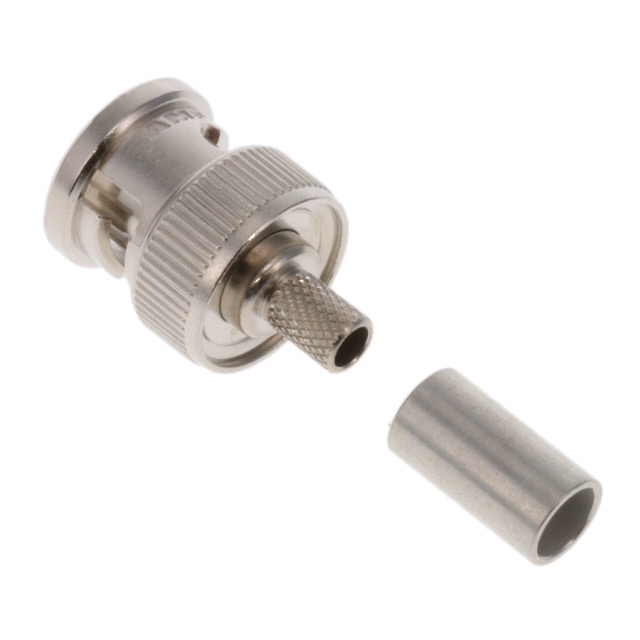

TE Connectivity Raychem Cable Protection 221128-1	Free Hanging (In-Line)	Crimp	58A 58B 58C RG-58	Nickel	Silver	0.2 dB	Brass	BNC	85 °C	-55 °C	4 GHz	50 Ohms	1	500	Crimp	500 V	Bayonet Lock	Zinc	Gold	Male Pin Plug
