794313 Series

Catalog

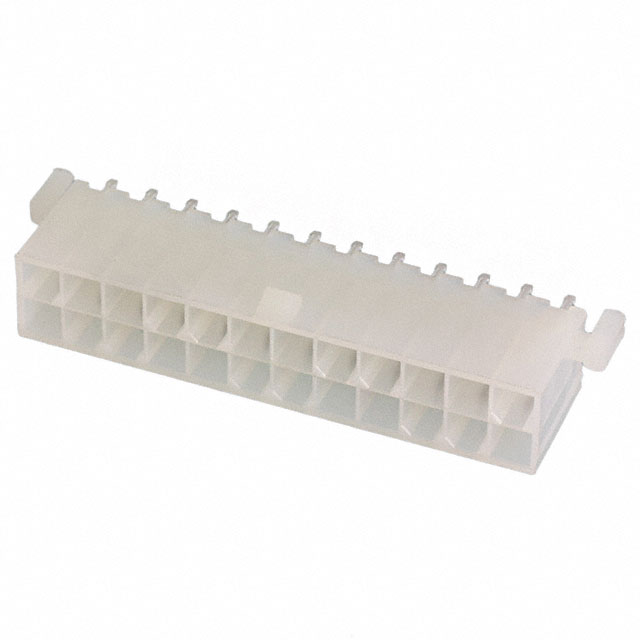

CONN HEADER VERT 24POS 4.2MM

Part	Shrouding	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Termination	Voltage Rating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Material	Contact Shape	Pitch - Mating	Pitch - Mating	Insulation Material	Insulation Height [z]	Insulation Height [z]	Fastening Type	Contact Finish - Post	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Type	Style	Number of Rows [custom]
TE Connectivity AMP Connectors 794313-1	Shrouded - 4 Wall	Natural	All	118.1 µin	3 µm	24	Through Hole	0.165 in	4.2 mm	Solder	600 VAC	Board Lock	-55 C	105 ░C	Header	Copper Alloy	Square	0.165 in	4.2 mm	Nylon Polyamide (PA)	12.8 mm	0.504 "	Locking Ramp	Tin-Lead	Tin-Lead	0.138 in	3.5 mm	UL94 V-2	Male Pin	Board to Board Cable	2
TE Connectivity AMP Connectors 794313-4	Shrouded - 4 Wall	Natural	All	30 Áin	0.76 Ám	24	Through Hole	0.165 in	4.2 mm	Solder	600 VAC	Board Lock	-55 C	105 ░C	Header	Copper Alloy	Square	0.165 in	4.2 mm	Nylon Polyamide (PA)	12.8 mm	0.504 "	Locking Ramp	Tin	Gold	0.138 in	3.5 mm	UL94 V-2	Male Pin	Board to Board Cable	2
