PIP3210 Series
Manufacturer: NXP USA Inc.
Beta
⌘K

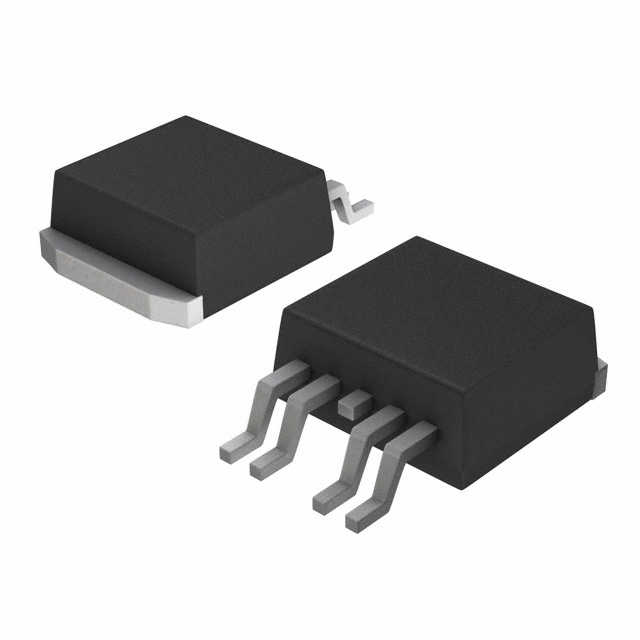

IC PWR SWITCH N-CHAN 1:1 SOT426
| Part | Input Type | Output Ratio | Input Ratio | Package Name | Mounting Type | Current - Output (Max) | Package / Case | Output Configuration | Interface | Number of Outputs | Output Type | Switch Type | Rds On (Typ) | Voltage - Load (Min) | Voltage - Load (Max) | Fault Protection | Voltage - Supply (Vdd/Vcc) | Voltage - Supply (Vcc/Vdd) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NXP USA Inc. | Non-Inverting | 1 | 1 | D2PAK | Surface Mount | 20 A | D2PAK (4 Leads + Tab) TO-263-5 TO-263BB | High Side | On/Off | 1 | N-Channel | General Purpose | 28 mOhm | 5.5 V | 35 V | Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage | Not Required | Not Required |
