A-HDF 62 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

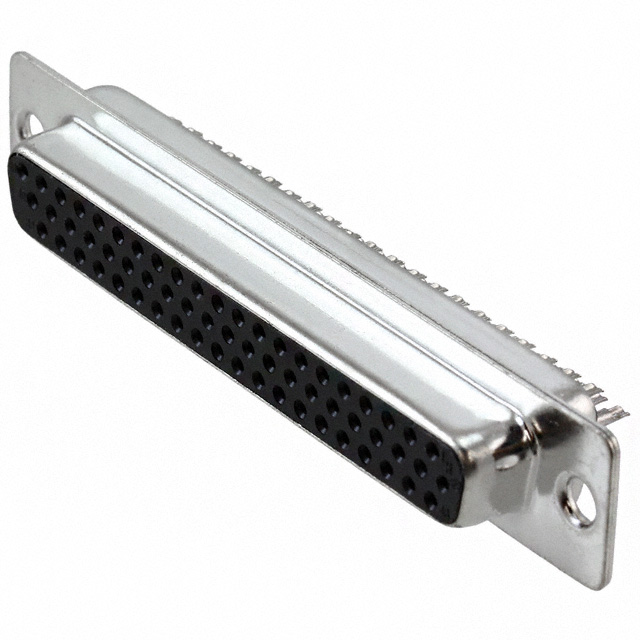

CONN D-SUB HD RCPT 62P SLDR CUP
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Dielectric Material | Voltage Rating | Contact Type | Current Rating (Amps) | Connector Style | Contact Finish Thickness | Contact Finish | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows [custom] | Number of Positions | Mounting Type | Connector Type | Material Flammability Rating | Flange Feature | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Black | 85 °C | -20 ░C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 250 V | Signal | 3 A | D-Sub High Density | Flash | Gold | C DC | 4 | 3 | 62 | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | Housing/Shell (Unthreaded) | |
 Assmann WSW Components | Black | 85 °C | -20 ░C | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | 250 V | Signal | 3 A | D-Sub High Density | Flash | Gold | C DC | 4 | 3 | 62 | Through Hole | Receptacle Female Sockets | UL94 V-0 | Housing/Shell (Unthreaded) | Solder |
