R18006 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

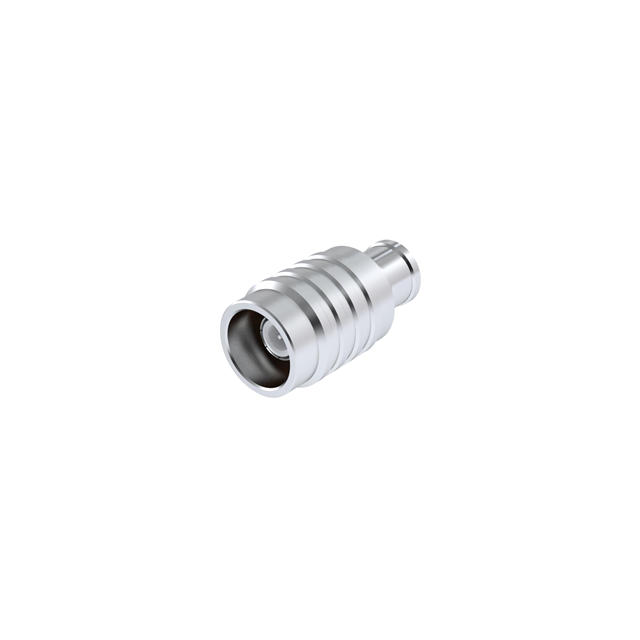

NEX10 M SL STR SD1/4 C50
| Part | Dielectric Material | Body Material | Center Contact Plating | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Connector Style | Number of Ports | Connector Type | Fastening Type | Impedance | Center Contact Material | Contact Termination | Mounting Type | Shield Termination | Body Finish | Housing Color | Cable Group | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | Silver | 500 V | -55 C | 125 °C | 20 GHz | NEX10 | 1 | Plug Male Pin | Push-Pull | 50 Ohms | Brass | Solder | Free Hanging (In-Line) | Solder | ||||
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | Silver | 500 V | -55 C | 125 °C | 20 GHz | NEX10 | 1 | Plug Male Pin | Push-Pull | 50 Ohms | Brass | Solder | Free Hanging (In-Line) | Solder | White Bronze | Silver | HCF 1/4" | IP68 - Dust Tight Waterproof |
