422-87 Series

Manufacturer: Preci-Dip

Catalog

CONN SOCKET 40POS 0.1 GOLD PCB

Part	Contact Shape	Insulation Material	Contact Material	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Insulation Color	Style	Mounting Type	Contact Finish - Post	Connector Type	Number of Positions Loaded	Current Rating (Amps)	Contact Type	Contact Length - Post	Contact Length - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Number of Positions [custom]
Preci-Dip 422-87-240-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	40	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
Preci-Dip 422-87-248-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	48	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
Preci-Dip 422-87-220-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	20	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
Preci-Dip 422-87-214-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	14	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
Preci-Dip 422-87-234-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in		-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold	34
Preci-Dip 422-87-242-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	42	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
Preci-Dip 422-87-264-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	64	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold

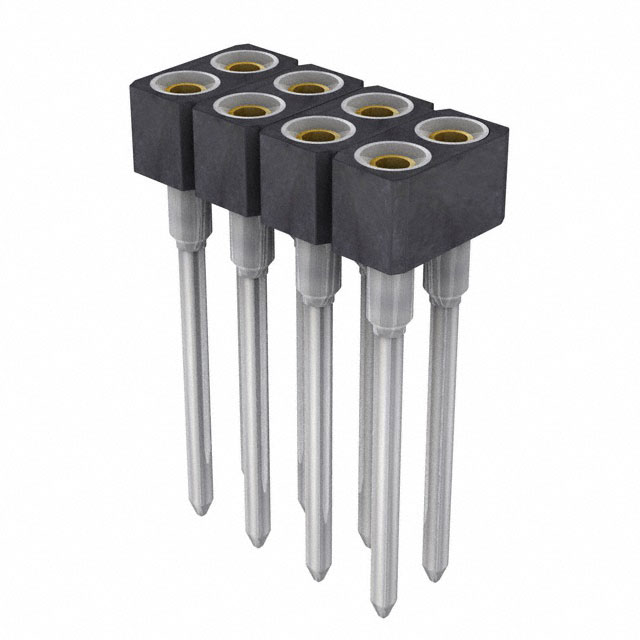

Preci-Dip 422-87-208-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	8	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
Preci-Dip 422-87-218-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	18	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
Preci-Dip 422-87-270-41-001101	Circular	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	2	0.1 in	2.54 mm	Push-Pull	4.9 mm	0.193 "	0.1 "	2.54 mm	Black	Board to Cable/Wire	Through Hole	Tin	Socket	All	3 A	Female Socket	9.4 mm	0.37 in	70	-55 C	125 °C	UL94 V-0	Flash	Wire Wrap	Gold
