HLW8S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

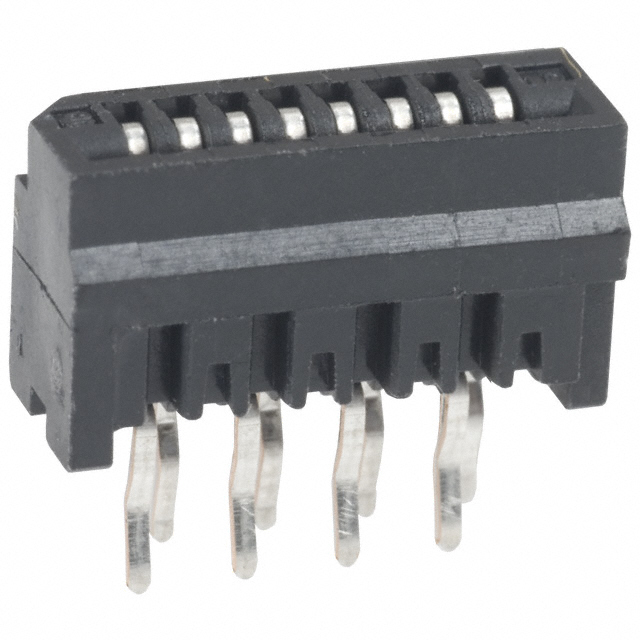

CONN FFC FPC VERT 8POS 1MM PCB
| Part | Contact Material | Voltage Rating | Contact Finish | Connector/Contact Type | Number of Positions | Housing Material | Flat Flex Type | Mating Cycles | Housing Color | Mounting Type | FFC, FCB Thickness | Height Above Board [z] | Height Above Board [z] | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Material Flammability Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Phosphor Bronze | 100 V | Tin | Contacts Vertical - 1 Sided | 8 | Polybutylene Terephthalate (PBT) Glass Filled | FFC FPC | 30 | Black | Through Hole | 0.33 mm | 5.9 mm | 0.232 in | 85 °C | -55 °C | 0.039 in | 1 mm | UL94 V-0 | Kinked Pin |
