ETH-071 Series
Manufacturer: European Thermodynamics Ltd
Beta
⌘K

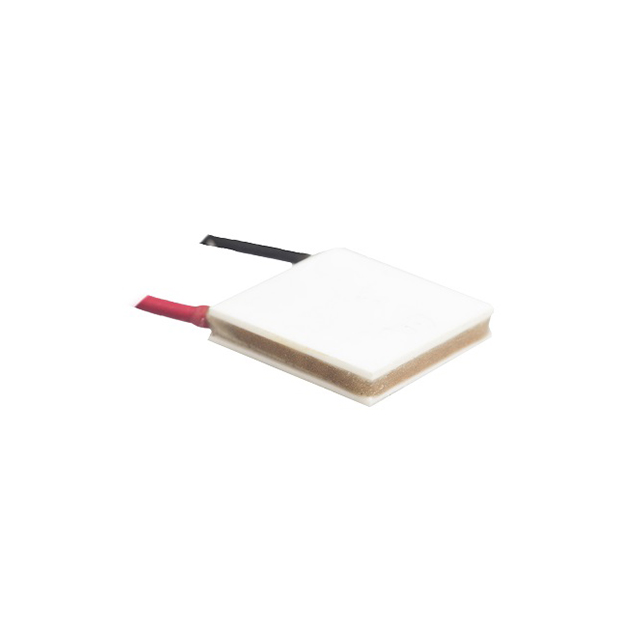

TE MODULE,71 COUPLES,H1,SIL
| Part | Operating Temperature | Qmax @ Th | Voltage - Max [Max] | Current - Max [Max] | Type | Height | Number of Stages | Features | Resistance | Size / Dimension [x] | Size / Dimension [y] | Height [z] | Delta Tmax @ Th |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 European Thermodynamics Ltd | 150 °C | 34 W | 9.1 V | 6.6 A | TEC (Thermoelectric Cooler) | 3.8 mm | 1 | Lead Wires Sealed - Silicone | 1.1 Ohms | 30 mm | 30 mm | ||
European Thermodynamics Ltd | 150 °C | 20 W | 8.6 V | 3.5 A | TEC (Thermoelectric Cooler) | 1 | Lead Wires Sealed - Silicone | 1.95 Ohms | 30 mm | 30 mm | 4.7 mm | 75 °C | |
European Thermodynamics Ltd | 150 °C | 9 V | 8 A | TEC (Thermoelectric Cooler) | 1 | Lead Wires | 30 mm | 30 mm | 3.2 mm | ||||
 European Thermodynamics Ltd | 150 °C | 18 W | 8.9 V | 3.5 A | TEC (Thermoelectric Cooler) | 1 | Lead Wires | 20 mm | 20 mm | 3.2 mm | 72 °C |
