1658043 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MSB0.80RC-ASY080FL,-,F,-TY

Part	Mated Stacking Heights	Height Above Board	Height Above Board	Connector Type	Pitch	Pitch	Contact Finish	Features	Number of Rows [custom]	Mounting Type	Contact Finish Thickness	Number of Positions	Number of Positions [custom]

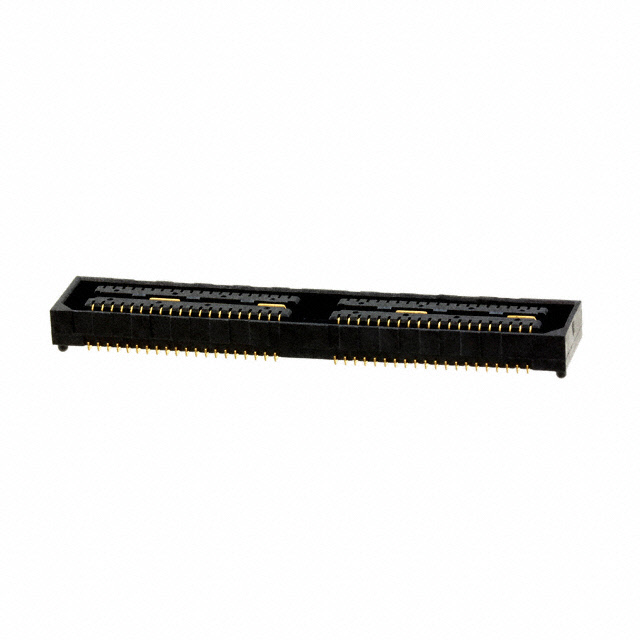

TE Connectivity AMP Connectors 1658043-2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Receptacle Center Strip Contacts	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	80
TE Connectivity AMP Connectors 3-1658043-3	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Differential Pair Array Female	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash		84
TE Connectivity AMP Connectors 4-1658043-1	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Receptacle Center Strip Contacts	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	40
TE Connectivity AMP Connectors 1658043-5	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Receptacle Center Strip Contacts	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	200

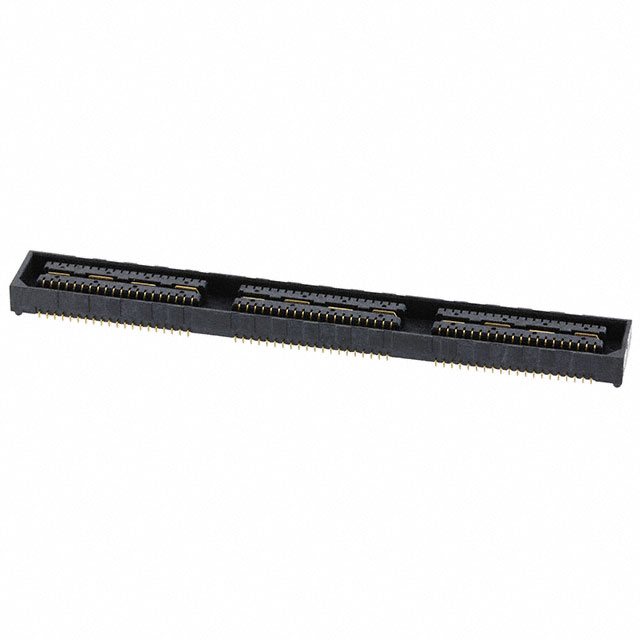

TE Connectivity AMP Connectors 4-1658043-3	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Receptacle Center Strip Contacts	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	120
TE Connectivity AMP Connectors 3-1658043-2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Differential Pair Array Female	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	56
TE Connectivity AMP Connectors 1-1658043-4	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Differential Pair Array Female	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	112

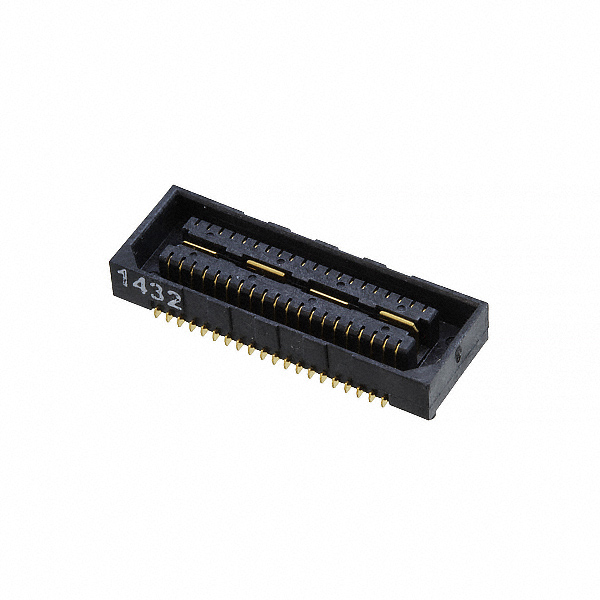

TE Connectivity AMP Connectors 2-1658043-1	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Receptacle Center Strip Contacts	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	40

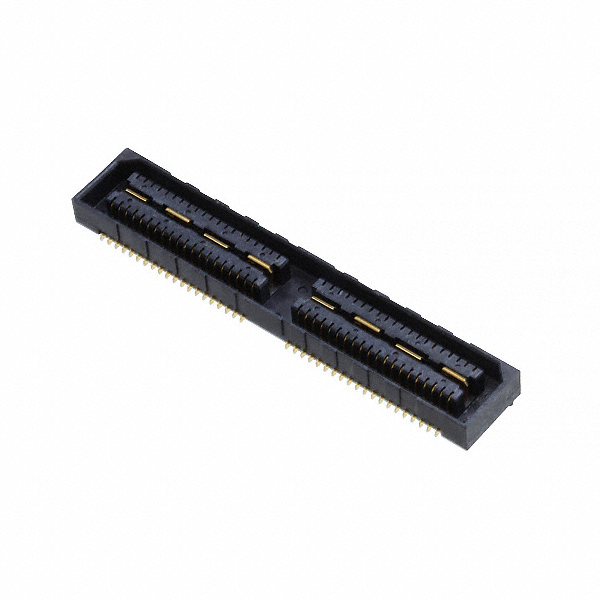

TE Connectivity AMP Connectors 2-1658043-2	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Receptacle Center Strip Contacts	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash	80

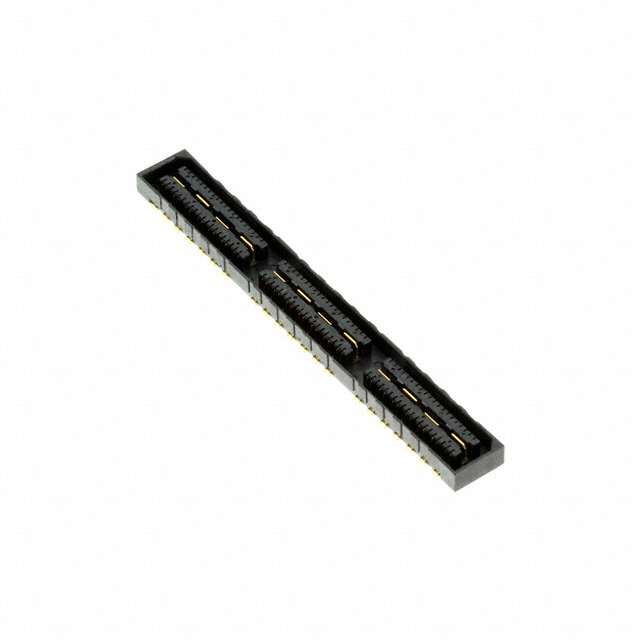

TE Connectivity AMP Connectors 1-1658043-3	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 22 mm 25 mm 30 mm	0.128 in	3.25 mm	Differential Pair Array Female	0.8 mm	0.031 in	Gold	Board Guide Ground Bus (Plane)	2	Surface Mount	Flash		84
