KXOB25 Series

Catalog

MONOCRYS SOLAR CELL 30.7MW 690MV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts) - Max [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Open Circuit	Current - Short Circuit (Isc)	Package / Case	Type	Voltage @ Pmpp	Current @ Pmpp
ANYSOLAR Ltd KXOB25-14X1F-TR	90 °C	-40 C	30.7 mW	1.8 mm	0.315 in	0.906 in	8 mm	0.071 in	23 mm	690 mV	58.6 mA	Cells	Monocrystalline	560 mV	55 mA

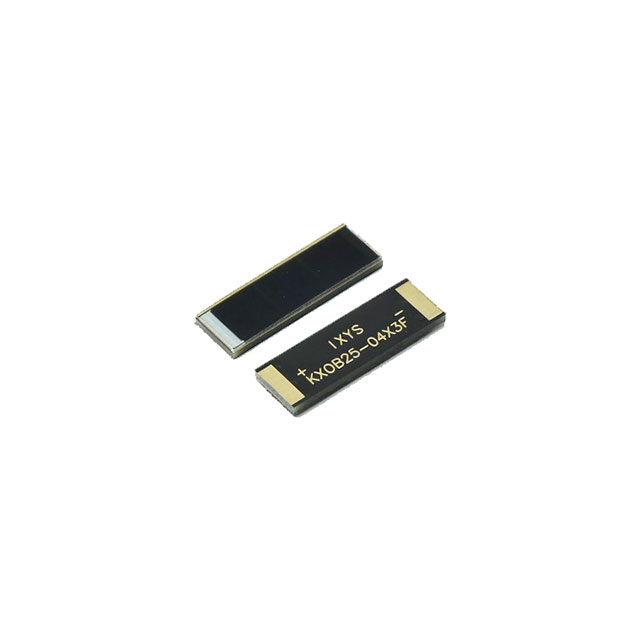

ANYSOLAR Ltd KXOB25-04X3F-TR	90 °C	-40 C	22 mW							2.07 V	14 mA	Cells	Monocrystalline	1.67 V	13.2 mA

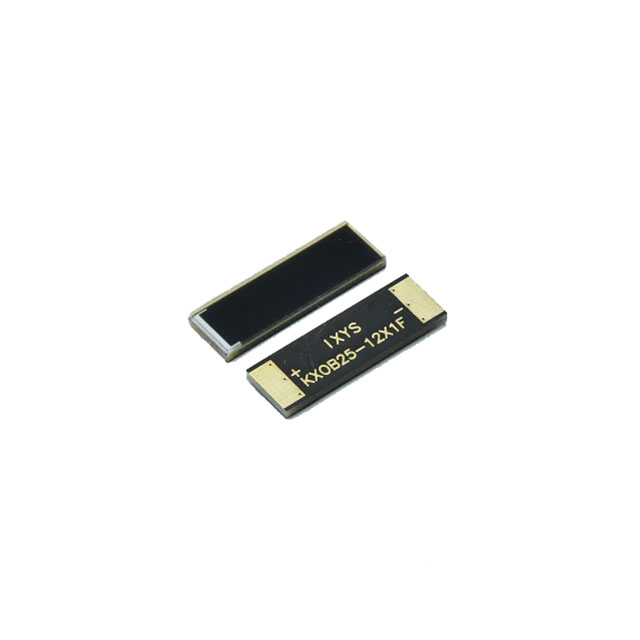

ANYSOLAR Ltd KXOB25-12X1F-TR	90 °C	-40 C	24.5 mW							690 mV	46.7 mA	Cells	Monocrystalline	560 mV	43.9 mA
ANYSOLAR Ltd KXOB25-04X3F-TB	90 °C	-40 C	22 mW							2.07 V	14 mA	Cells	Monocrystalline	1.67 V	13.2 mA

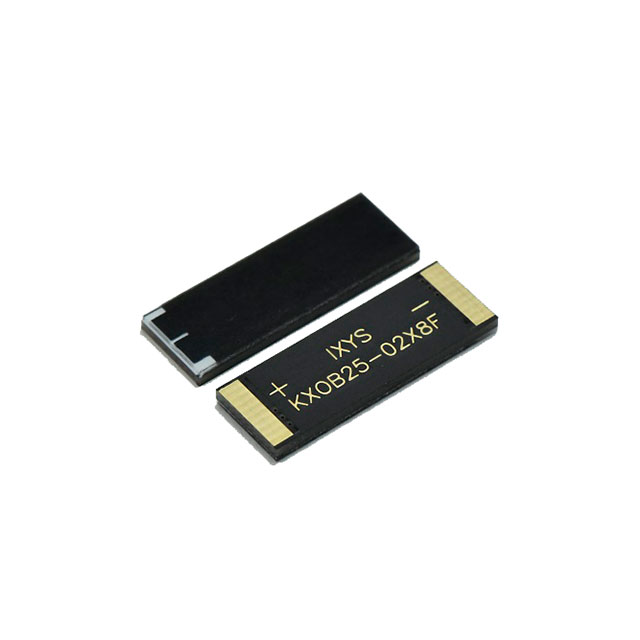

ANYSOLAR Ltd KXOB25-02X8F-TB	90 °C	-40 C	26.3 mW	1.8 mm	0.315 in	0.906 in	8 mm	0.071 in	23 mm	5.53 V	6.3 mA	Cells	Monocrystalline	4.46 V	5.9 mA
ANYSOLAR Ltd KXOB25-12X1F-TB	90 °C	-40 C	24.5 mW							690 mV	46.7 mA	Cells	Monocrystalline	560 mV	43.9 mA
ANYSOLAR Ltd KXOB25-01X8F-TB	90 °C	-40 C	24.5 mW							5.53 V	5.9 mA	Cells	Monocrystalline	4.46 V	5.5 mA
ANYSOLAR Ltd KXOB25-01X8F-TR	90 °C	-40 C	24.5 mW							5.53 V	5.9 mA	Cells	Monocrystalline	4.46 V	5.5 mA
ANYSOLAR Ltd KXOB25-02X8F-TR	90 °C	-40 C	26.3 mW	1.8 mm	0.315 in	0.906 in	8 mm	0.071 in	23 mm	5.53 V	6.3 mA	Cells	Monocrystalline	4.46 V	5.9 mA
