V7-7B1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 11A 125V

Part	Voltage Rating - AC	Differential Travel	Differential Travel	Operating Position	Operating Position	Electrical Life	Circuit	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Release Force	Operating Force	Mounting Type	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Termination Style	Actuator Type	Switch Function	Voltage Rating - DC	Operating Position [x]	Operating Position [x]

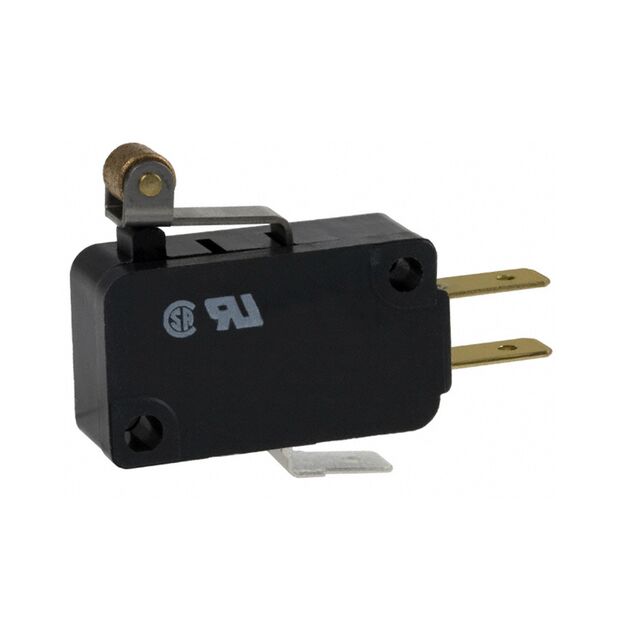

Honeywell Sensing and Productivity Solutions V7-7B17D862-201	125 V	0.013 in	0.33 mm	0.806 in	20.5 mm	100000 Cycles	SPDT	11 A 500 mA	85 °C	-40 C	0.055 in	1.4 mm	28 gf	283 gf	Chassis Mount	10000000 Cycles	0.035 "	0.9 mm	Quick Connect	Lever Roller	On-Mom	125 VDC

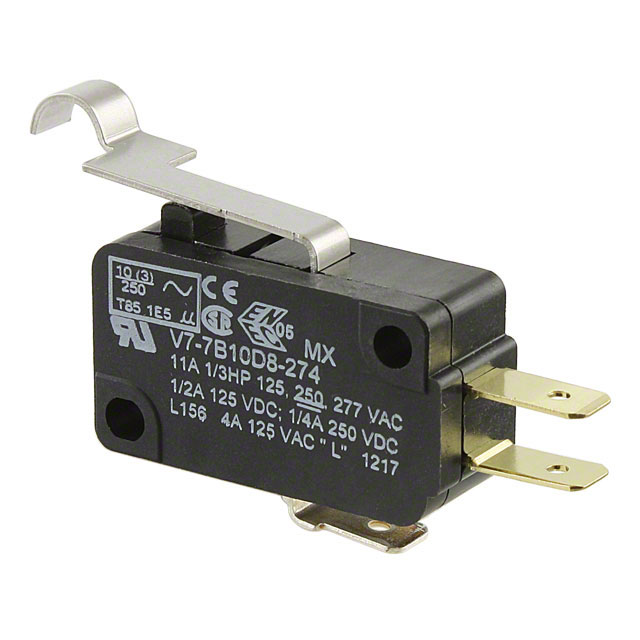

Honeywell Sensing and Productivity Solutions V7-7B10D8-274	125 V	0.032 in	0.81 mm			100000 Cycles	SPDT	11 A 500 mA	85 °C	-40 C	0.11 in	2.8 mm	28 gf	141 gf	Chassis Mount	10000000 Cycles	0.075 in	1.9 mm	Quick Connect	Lever Simulated Roller	On-Mom	125 VDC	18.5 mm	0.73 in
Honeywell Sensing and Productivity Solutions V7-7B17D8-481	125 V	0.02 in	0.5 mm	0.77 in	19.5 mm	100000 Cycles	SPDT	11 A 500 mA	85 °C	-40 C	0.085 in	2.16 mm	28 gf	178 gf	Chassis Mount	10000000 Cycles	0.051 "	1.3 mm	Quick Connect	Lever Formed	On-Mom	125 VDC
Honeywell Sensing and Productivity Solutions V7-7B17D8-073	125 V	0.055 in	1.4 mm	0.602 in	15.3 mm	100000 Cycles	SPDT	11 A 500 mA	85 °C	-40 C	0.25 in	6.35 mm	9 gf	60 gf	Chassis Mount	10000000 Cycles	0.125 in	3.2 mm	Quick Connect	Lever Formed	On-Mom	125 VDC
Honeywell Sensing and Productivity Solutions V7-7B19D8-640	125 V	0.06 in	1.5 mm	0.602 in	15.3 mm	100000 Cycles	SPDT	11 A 500 mA	85 °C	-40 C	0.27 in	6.85 mm	8 gf	63 gf	Chassis Mount	10000000 Cycles	0.134 "	3.4 mm	Quick Connect		On-Mom	125 VDC
