TPSM63608 Series
High-density, 36-V input, 1-V to 20-V output, 6-A power module in 7.5-mm x 6.5-mm HotRod™ QFN
Manufacturer: Texas Instruments
Catalog
High-density, 36-V input, 1-V to 20-V output, 6-A power module in 7.5-mm x 6.5-mm HotRod™ QFN
Key Features
• Functional Safety-CapableDocumentation available to aid functional safety system designVersatile 36-V IN, 6-A OUT synchronous buck moduleIntegrated MOSFETs, inductor, and controllerAdjustable output voltage from 1 V to 20 V6.5-mm × 7.5-mm × 4-mm overmolded package–40°C to 125°C junction temperature rangeFrequency adjustable from 200 kHz to 2.2 MHzNegative output voltage capabilityUltra-high efficiency across the full load rangePeak efficiency of 95%+External bias option for improved efficiencyExposed pad for low thermal impedance. EVM θ JA = 18.2 °C/W.Shutdown quiescent current of 0.6 µA (typical)0.5-V typical dropout voltage at 4-A loadUltra-low conducted and radiated EMI signaturesLow-noise package with dual input paths and integrated capacitors reduces switch ringingResistor-adjustable switch-node slew rateMeets CISPR 11 and 32 Class B emissionsDesigned for scalable power suppliesPin compatible with the TPSM63610 (36 V, 8 A)Inherent protection features for robust designPrecision enable input and open-drain PGOOD indicator for sequencing, control, and V IN UVLOOvercurrent and thermal shutdown protectionsCreate a custom design using the TPSM63608 with theWEBENCH Power DesignerFunctional Safety-CapableDocumentation available to aid functional safety system designVersatile 36-V IN, 6-A OUT synchronous buck moduleIntegrated MOSFETs, inductor, and controllerAdjustable output voltage from 1 V to 20 V6.5-mm × 7.5-mm × 4-mm overmolded package–40°C to 125°C junction temperature rangeFrequency adjustable from 200 kHz to 2.2 MHzNegative output voltage capabilityUltra-high efficiency across the full load rangePeak efficiency of 95%+External bias option for improved efficiencyExposed pad for low thermal impedance. EVM θ JA = 18.2 °C/W.Shutdown quiescent current of 0.6 µA (typical)0.5-V typical dropout voltage at 4-A loadUltra-low conducted and radiated EMI signaturesLow-noise package with dual input paths and integrated capacitors reduces switch ringingResistor-adjustable switch-node slew rateMeets CISPR 11 and 32 Class B emissionsDesigned for scalable power suppliesPin compatible with the TPSM63610 (36 V, 8 A)Inherent protection features for robust designPrecision enable input and open-drain PGOOD indicator for sequencing, control, and V IN UVLOOvercurrent and thermal shutdown protectionsCreate a custom design using the TPSM63608 with theWEBENCH Power Designer
Description
AI

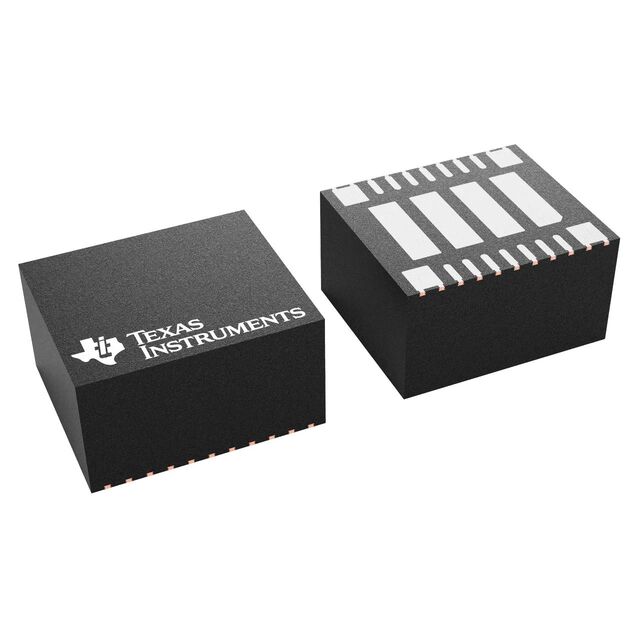

Deriving from a family of synchronous buck modules, the TPSM63608 is a highly integrated 36-V, 6-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an enhanced HotRod™ QFN package. The module has VIN and VOUT pins located at the corners of the package for optimized input and output capacitor placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing.
With an output voltage from 1 V to 20 V, the TPSM63608 is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process.
Although designed for small size and simplicity in space-constrained applications, the TPSM63608 module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum for improved EMI. Along with integrated VCC, bootstrap and input capacitors for increased reliability and higher density. The module can be configured for constant switching frequency over the full load current range (FPWM), or variable frequency (PFM) for higher light load efficiency. Including a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.
space
Deriving from a family of synchronous buck modules, the TPSM63608 is a highly integrated 36-V, 6-A DC/DC solution that combines power MOSFETs, a shielded inductor, and passives in an enhanced HotRod™ QFN package. The module has VIN and VOUT pins located at the corners of the package for optimized input and output capacitor placement. Four larger thermal pads beneath the module enable a simple layout and easy handling in manufacturing.
With an output voltage from 1 V to 20 V, the TPSM63608 is designed to quickly and easily implement a low-EMI design in a small PCB footprint. The total solution requires as few as four external components and eliminates the magnetics and compensation part selection from the design process.
Although designed for small size and simplicity in space-constrained applications, the TPSM63608 module offers many features for robust performance: precision enable with hysteresis for adjustable input-voltage UVLO, resistor-programmable switch node slew rate and spread spectrum for improved EMI. Along with integrated VCC, bootstrap and input capacitors for increased reliability and higher density. The module can be configured for constant switching frequency over the full load current range (FPWM), or variable frequency (PFM) for higher light load efficiency. Including a PGOOD indicator for sequencing, fault protection, and output voltage monitoring.
