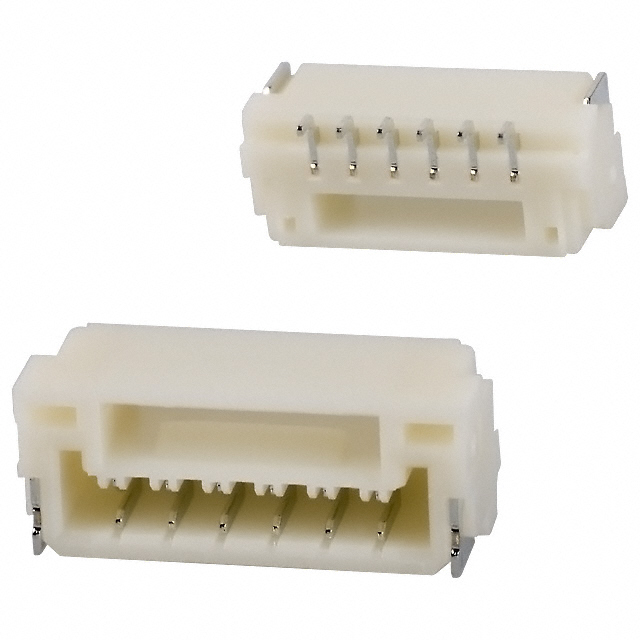

SM06B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 6POS 1.25MM
| Part | Voltage Rating | Material Flammability Rating | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Number of Positions | Contact Type | Number of Positions Loaded | Contact Shape | Mounting Type | Style | Termination | Contact Material | Features | Fastening Type | Insulation Material | Number of Rows | Shrouding | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 50 VAC | UL94 V-0 | Natural | 85 °C | -25 °C | Header | 6 | Outer Shroud Contact | All | Rectangular | Right Angle Surface Mount | Board to Cable/Wire | Solder | Phosphor Bronze | Solder Retention | Locking Ramp | Nylon 9T Polyamide (PA9T) | 1 | Shrouded - 4 Wall | 0.049 in | 1.25 mm | 4.25 mm | 0.167 " | |
 JST Sales America Inc. | 50 V | UL94 V-0 | Natural | 85 °C | -25 °C | Header | 6 | Outer Shroud Contact | All | Rectangular | Right Angle Surface Mount | Board to Cable/Wire | Solder | Phosphor Bronze | Solder Retention | Locking Ramp | Nylon 9T Polyamide (PA9T) | 1 | Shrouded - 4 Wall | 0.049 in | 1.25 mm | 4.25 mm | 0.167 " | Tin |
