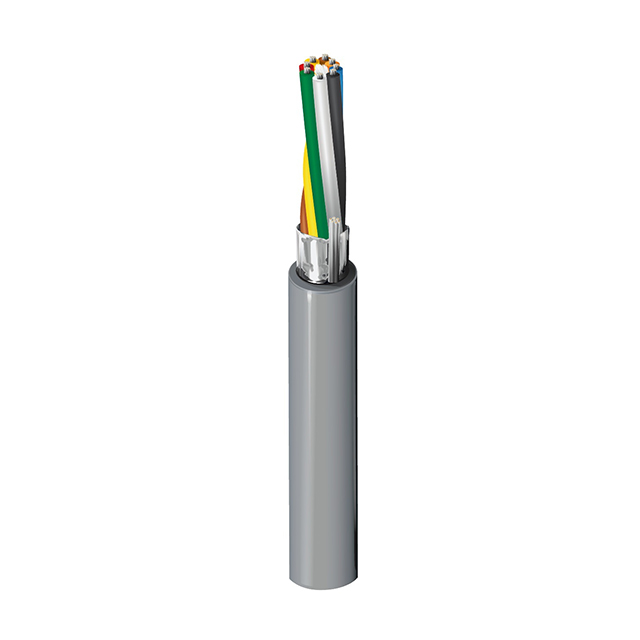

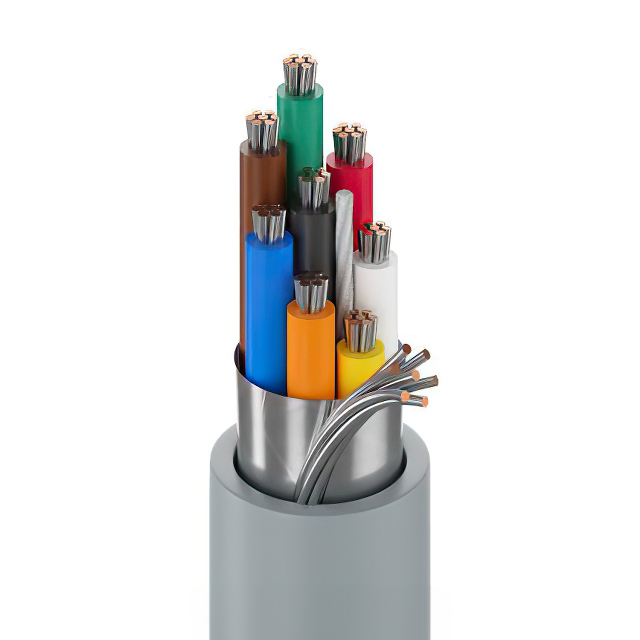

9538 Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 8COND 24AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Usage | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Number of Conductors [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Ratings | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 5.69 mm | 0.224 " | Foil | 24 AWG | Drain Wire | 80 °C | -30 ░C | 300 VDC | Computer | Chrome | Multi-Conductor | 0.813 mm | 0.032 in | 304.8 m | 1000 ft | 8 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | UL Style 2464 | ||
 Belden Inc. | 100 % | Aluminum | Copper Tinned | Poly-Vinyl Chloride (PVC) | 5.69 mm | 0.224 " | Foil | 24 AWG | Drain Wire | 80 °C | -30 ░C | Computer | Chrome | Multi-Conductor | 0.813 mm | 0.032 in | 8 | 7 | 32 AWG | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
