2271887 Series

Catalog

DYNAMIC 1100D HDR ASSY H 20PX BL

Part	Current Rating (Amps)	Shrouding	Number of Positions Loaded	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Height	Insulation Height	Insulation Material	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Termination	Material Flammability Rating	Features	Insulation Color	Connector Type	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post

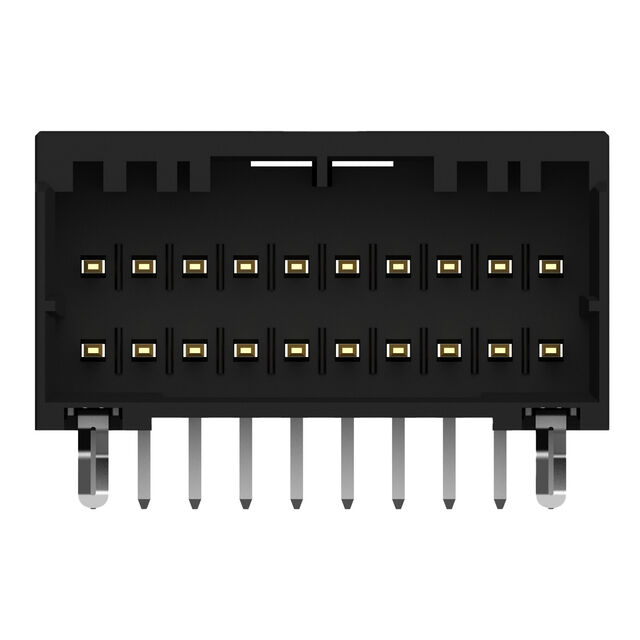

TE Connectivity Raychem Cable Protection 1-2271887-0	3 A	Shrouded - 4 Wall	All	2	0.122 "	3.1 mm	Male Pin	0.465 in	11.8 mm	Glass Filled Polyester Thermoplastic	Push-Pull	3.3 mm	0.13 in	Board to Cable/Wire	20	105 ░C	-55 °C	Copper Alloy	Rectangular	0.079 in	2 mm	Solder	UL94 V-0	Solder Retention	Black	Header	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 1-2271887-5		Shrouded - 4 Wall	All	2	0.122 "	3.1 mm	Male Pin	0.465 in	11.8 mm		Push-Pull	3.3 mm	0.13 in	Board to Cable/Wire	10	105 ░C	-55 °C	Copper Alloy	Rectangular	0.079 in	2 mm	Solder	UL94 V-0	Board Guide	Black	Header	Through Hole	2 çm	78.7 çin	1 µm	39.4 µin	Tin
