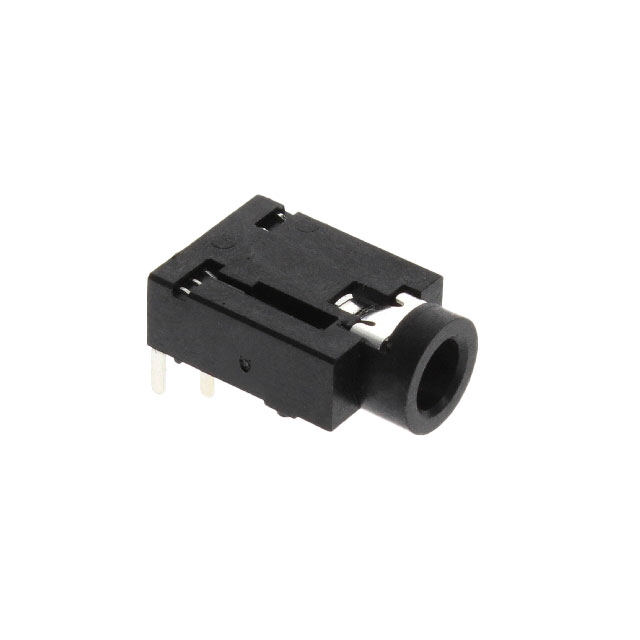

ASJ-99H Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK
| Part | Current Rating (Amps) | Housing Material | Voltage - Rated | Contact Material - Plating | Contact Material | Mating Length/Depth | Mating Length/Depth | Mounting Type | Features | Signal Lines | Connector Type | Actual Diameter [diameter] | Actual Diameter [diameter] | Number of Positions/Contacts | Internal Switch(s) | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Termination | Gender | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 0.5 A | Thermoplastic | 30 V | Silver | Copper Alloy | 14 mm | 0.551 in | Right Angle Through Hole | Board Guide | Stereo (3 Conductor TRS) | Phone Jack | 0.142 in | 3.6 mm | 3 Conductors 6 Positions | Three Switches | -20 ░C | 70 °C | Unshielded | Solder | Female | 0.125 in | 3.5 mm | 0.141 in |
